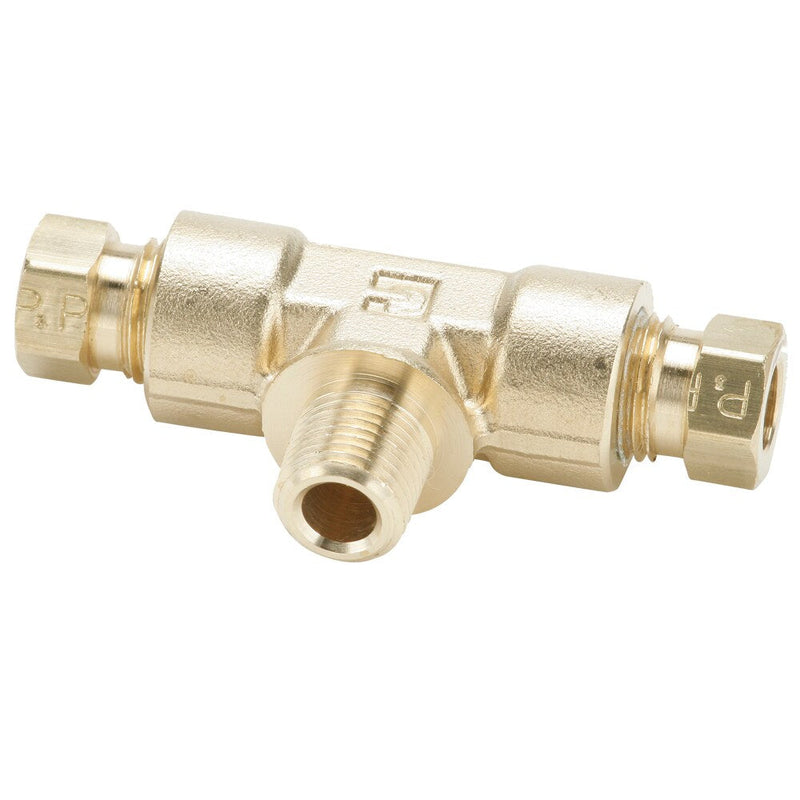

172HD-4-2 by Parker | Hi-Duty Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread | Min. Orifice Size: .187" | .500" Hex | Tee | Brass | Pack of 10

172HD-4-2 by Parker | Hi-Duty Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread | Min. Orifice Size: .187" | .500" Hex | Tee | Brass | Pack of 10

Save $257.84 Save $257.84
$644.60
$644.60 - $644.60
$644.60
$386.76
$386.76 - $386.76
$386.76

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:Male Branch Tee 172HD

Package Quantity: 10 Units

Specifications for Variant SKU: 172HD-4-2 Parker | 10 |
Series: 172HD Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Fuel Grade
Product Features:
  • All brass construction
  • Two piece fitting
  • Higher pressure rating
  • Easy assembly
Markets:
  • Mobile
  • Industrial
  • Compressors
  • Lubrication
Applications:
  • Lubrication Lines
  • Coolant Lines
  • Oil Lines
  • Engines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Seamless Steel
  • Thermoplastic Tubing
Part Number Tube Size Pipe Thread Minimum Orifice Size A B Hex (C) D
172HD-4-2 1/4" 1/8" .187" 1.082" .687" .500" .780"
172HD-4-4 1/4" 1/4" .187" 1.269" .875" .500" .937"
172HD-6-6 3/8" 3/8" .312" 1.406" 1.000" .562" 1.125"
