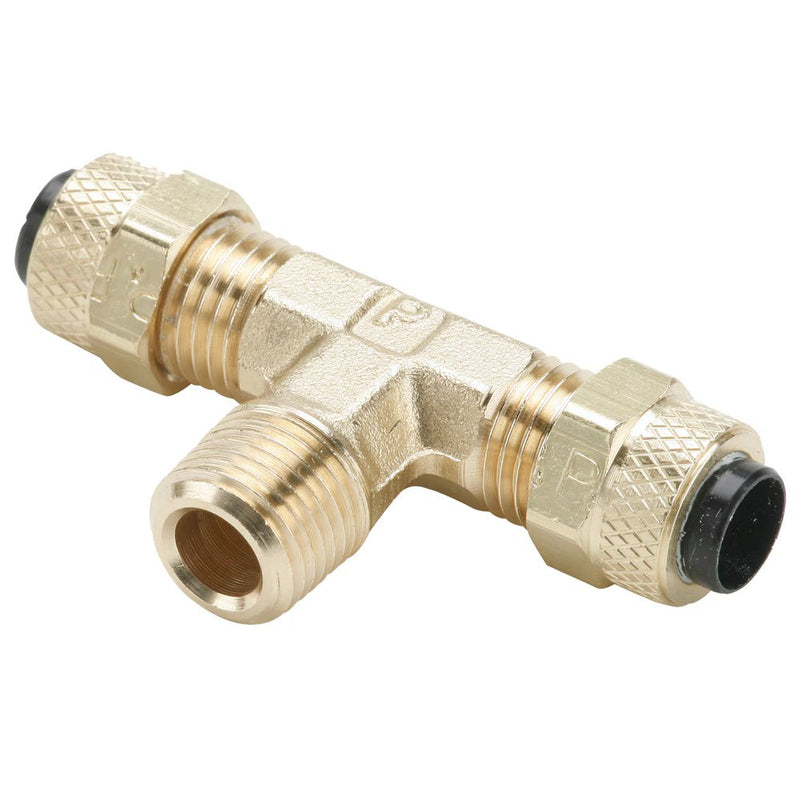

172P-4-4 by Parker | Poly-Tite Fittings | 1/4" Tube Size x 1/4" Male Pipe Thread x 3/8" Thread | 1.84" Length | Tee | Brass | Pack of 10

172P-4-4 by Parker | Poly-Tite Fittings | 1/4" Tube Size x 1/4" Male Pipe Thread x 3/8" Thread | 1.84" Length | Tee | Brass | Pack of 10

Save $11.17 Save $11.17
$122.90
$122.90 - $122.90
$122.90
$111.73
$111.73 - $111.73
$111.73

by Parker Hannifin
Poly-Tite Fittings:Male Branch Tee 172P

Package Quantity: 10 Units

Specifications for Variant SKU: 172P-4-4 Parker | 10 |
Series: 172P Series
Shape (Orientation): Tee
Material(s): Brass, Acetal Copolymer
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (F)
172P-4-2 1/4" 1/8" 3/8"-24 .84" .73" .72" .125"
172P-4-4 1/4" 1/4" 3/8"-24 .92" .81" .92" .144"
172P-5-2 5/16" 1/8" 7/16"-24 .83" .73" .72" .144"
172P-6-2 3/8" 1/8" 1/2"-24 .88" .86" .74" .204"
172P-6-4 3/8" 1/4" 1/2"-24 .98" .86" 1.03" .204"
172P-8-6 1/2" 3/8" 11/16"-20 1.12" 1.04" 1.13" .323"
