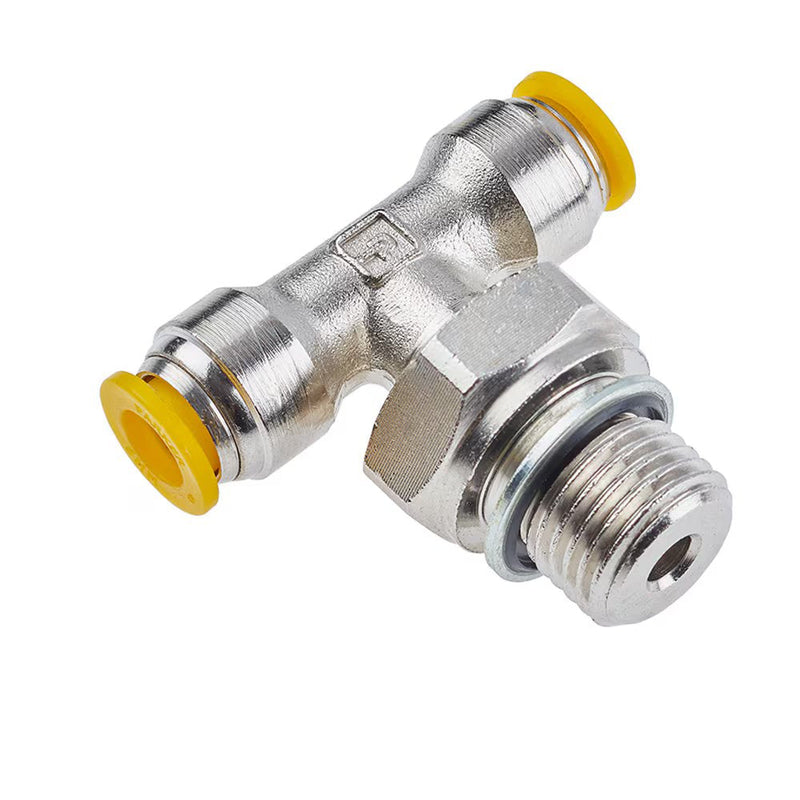

172PLP-10M-6G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 10mm Swivel Push-to-Connect x 10mm Swivel Push-to-Connect x 3/8" Male BSPP Thread | 7/8" Hex | Tee | Nickel-Plated Brass | Pack of 10

Save $23.16

$163.83

$163.83 - $163.83

$163.83

$140.67

$140.67 - $140.67

$140.67

by Parker Hannifin
Push-to-Connect Fittings:172PLP Male Branch Tee Swivel – BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 172PLP-10M-6G Parker \| 10 \|
Series:	172PLP Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button, Swivel

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size	Thread BSPP	Hex (C)	L	N	Flow Diameter (D)
172PLP-4M-2G	4 mm	1/8"	9/16"	19.05 mm	24.35 mm	3.17 mm
172PLP-4M-4G	4 mm	1/4"	3/4"	19.05 mm	30.70 mm	3.17 mm
172PLP-6M-2G	6 mm	1/8"	9/16"	21.15 mm	23.92 mm	3.96 mm
172PLP-6M-4G	6 mm	1/4"	3/4"	21.15 mm	30.27 mm	3.96 mm
172PLP-6M-6G	6 mm	3/8"	7/8"	21.15 mm	32.30 mm	3.96 mm
172PLP-8M-2G	8 mm	1/8"	9/16"	24.20 mm	27.33 mm	6.35 mm
172PLP-8M-4G	8 mm	1/4"	3/4"	24.20 mm	33.42 mm	6.35 mm
172PLP-8M-6G	8 mm	3/8"	7/8"	24.20 mm	33.42 mm	6.35 mm
172PLP-10M-4G	10 mm	1/4"	3/4"	25.52 mm	33.42 mm	6.35 mm
172PLP-10M-6G	10 mm	3/8"	7/8"	25.52 mm	33.42 mm	6.35 mm
172PLP-10M-8G	10 mm	1/2"	1-1/16"	25.52 mm	38.25 mm	6.35 mm
172PLP-12M-4G	12 mm	1/4"	3/4"	28.65 mm	35.56 mm	7.95 mm
172PLP-12M-6G	12 mm	3/8"	7/8"	28.65 mm	35.56 mm	9.52 mm
172PLP-12M-8G	12 mm	1/2"	1-1/16"	28.65 mm	39.11 mm	9.52 mm
