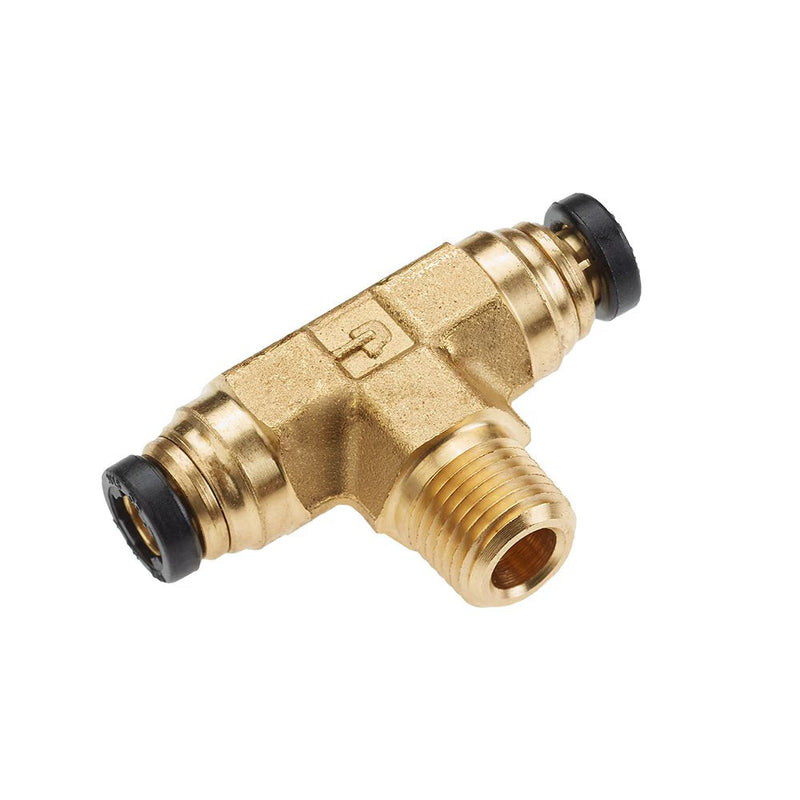

172PTCNS-3-2 by Parker | Threaded Fitting | 3/16" Rigid Push-to-Connect x 1/8" Male NPT Thread | 1.19" Length | Tee | Brass | Pack of 10

172PTCNS-3-2 by Parker | Threaded Fitting | 3/16" to 1/8" Rigid Push-to-Connect x .77" Male NPT Thread | 1.19" Length | Tee | Brass | Pack of 10

Save $201.69

$504.22

$504.22 - $504.22

$504.22

$302.53

$302.53 - $302.53

$302.53

by Parker Hannifin
PTC Brass Fittings:Male Branch Tee Rigid 172PTCNS

Package Quantity: 10 Units

Specifications for Variant SKU: 172PTCNS-3-2 Parker \| 10 \|
Series:	172PTCNS Series
Shape (Orientation):	Tee
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Specification:
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size 1	Tube Size 2	Pipe Thread	L1	L2	N	Wrench Flats
172PTCNS-5/32-2	5/32"	1/8"	.78"	.75"	7/16"	.47"	15/32"
172PTCNS-5/32-4	5/32"	1/4"	.78"	.88"	7/16"	.47"	15/32"
172PTCNS-3-2	3/16"	1/8"	.77"	.75"	7/16"	.47"	15/32"
172PTCNS-4-2	1/4"	1/4"	1/8"	.91"	.91"	.77"	1/2"
172PTCNS-4-4	1/4"	1/4"	1/4"	N/A	N/A	N/A	N/A
172PTCNS-6-4	3/8"	3/8"	1/4""	1.10"	1.10"	.97"	5/8"
172PTCNS-6-4-4	3/8"	1/4"	1/4"	1.10"	.85"	.97"	5/8"
172PTCNS-6-6	3/8"	3/8"	3/8"	1.04"	1.04"	.91"	5/8"
172PTCNS-6-8	3/8"	3/8"	1/2"	1.17"	1.17"	1.26"	7/8"
172PTCNS-8-6	1/2"	1/2"	3/8"	1.31"	1.31"	1.07"	3/4"
172PTCNS-8-6-8	1/2"	3/8"	1/2"	1.31"	1.24"	1.25"	3/4"
172PTCNS-8-8	1/2"	1/2"	1/2"	1.31"	1.31"	1.25"	3/4"
