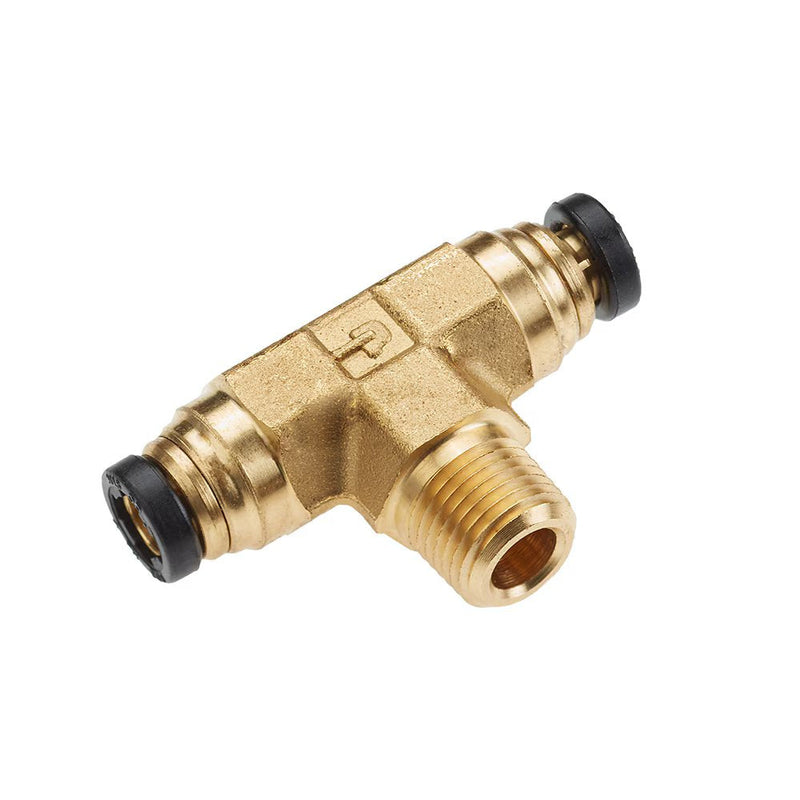

172PTCNS-5/32-2 by Parker | Threaded Fitting | 5/32" Rigid Push-to-Connect x 1/8" Male NPT Thread | 1.19" Length | Tee | Brass | Pack of 10

172PTCNS-5/32-2 by Parker | Threaded Fitting | 5/32" to 1/8" Rigid Push-to-Connect x .78" Male NPT Thread | 1.19" Length | Tee | Brass | Pack of 10

Save $206.75 Save $206.75
$516.88
$516.88 - $516.88
$516.88
$310.13
$310.13 - $310.13
$310.13

by Parker Hannifin
PTC Brass Fittings:Male Branch Tee Rigid 172PTCNS

Package Quantity: 10 Units

Specifications for Variant SKU: 172PTCNS-5/32-2 Parker | 10 |
Series: 172PTCNS Series
Shape (Orientation): Tee
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size 1 Tube Size 2 Pipe Thread L1 L2 N Wrench Flats
172PTCNS-5/32-2 5/32" 1/8" .78" .75" 7/16" .47" 15/32"
172PTCNS-5/32-4 5/32" 1/4" .78" .88" 7/16" .47" 15/32"
172PTCNS-3-2 3/16" 1/8" .77" .75" 7/16" .47" 15/32"
172PTCNS-4-2 1/4" 1/4" 1/8" .91" .91" .77" 1/2"
172PTCNS-4-4 1/4" 1/4" 1/4" N/A N/A N/A N/A
172PTCNS-6-4 3/8" 3/8" 1/4"" 1.10" 1.10" .97" 5/8"
172PTCNS-6-4-4 3/8" 1/4" 1/4" 1.10" .85" .97" 5/8"
172PTCNS-6-6 3/8" 3/8" 3/8" 1.04" 1.04" .91" 5/8"
172PTCNS-6-8 3/8" 3/8" 1/2" 1.17" 1.17" 1.26" 7/8"
172PTCNS-8-6 1/2" 1/2" 3/8" 1.31" 1.31" 1.07" 3/4"
172PTCNS-8-6-8 1/2" 3/8" 1/2" 1.31" 1.24" 1.25" 3/4"
172PTCNS-8-8 1/2" 1/2" 1/2" 1.31" 1.31" 1.25" 3/4"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
