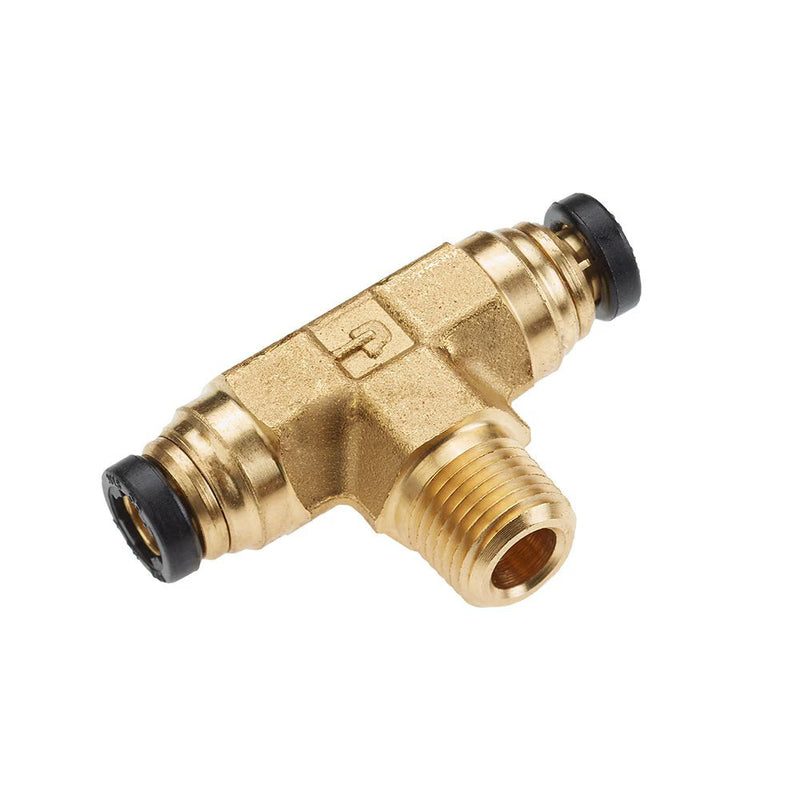

172PTCNS-6-4-4 by Parker | Threaded Fitting | 3/8" to 1/4" Rigid Push-to-Connect x 1/4" Male NPT Thread | 1.95" Length | Tee | Brass | Pack of 5

172PTCNS-6-4-4 by Parker | Threaded Fitting | 3/8" to 1/4" Rigid Push-to-Connect x 1/4" Male NPT Thread | 1.95" Length | Tee | Brass | Pack of 5

Save $24.24 Save $24.24
$185.64
$185.64 - $185.64
$185.64
$161.40
$161.40 - $161.40
$161.40

by Parker Hannifin
PTC Brass Fittings:Male Branch Tee Rigid 172PTCNS

Package Quantity: 5 Units

Specifications for Variant SKU: 172PTCNS-6-4-4 Parker | 5 |
Series: 172PTCNS Series
Shape (Orientation): Tee
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size 1 Tube Size 2 Pipe Thread L1 L2 N Wrench Flats
172PTCNS-5/32-2 5/32" 1/8" .78" .75" 7/16" .47" 15/32"
172PTCNS-5/32-4 5/32" 1/4" .78" .88" 7/16" .47" 15/32"
172PTCNS-3-2 3/16" 1/8" .77" .75" 7/16" .47" 15/32"
172PTCNS-4-2 1/4" 1/4" 1/8" .91" .91" .77" 1/2"
172PTCNS-4-4 1/4" 1/4" 1/4" N/A N/A N/A N/A
172PTCNS-6-4 3/8" 3/8" 1/4"" 1.10" 1.10" .97" 5/8"
172PTCNS-6-4-4 3/8" 1/4" 1/4" 1.10" .85" .97" 5/8"
172PTCNS-6-6 3/8" 3/8" 3/8" 1.04" 1.04" .91" 5/8"
172PTCNS-6-8 3/8" 3/8" 1/2" 1.17" 1.17" 1.26" 7/8"
172PTCNS-8-6 1/2" 1/2" 3/8" 1.31" 1.31" 1.07" 3/4"
172PTCNS-8-6-8 1/2" 3/8" 1/2" 1.31" 1.24" 1.25" 3/4"
172PTCNS-8-8 1/2" 1/2" 1/2" 1.31" 1.31" 1.25" 3/4"
