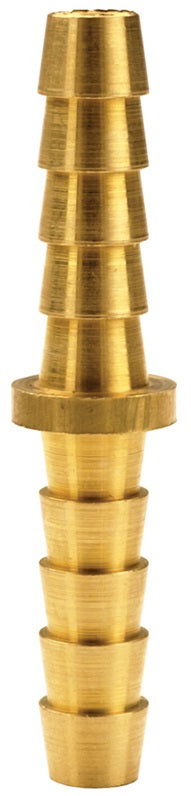

1780404C by Dixon Valve | Hose Mender / Splicer | 1/4" Hose ID x 1/4" Hose ID | Brass

Name: 1780404C by Dixon Valve | Hose Mender / Splicer | 1/4" Hose ID x 1/4" Hose ID | Brass
Brand: Dixon
SKU: 1780404C Dixon
Price: 1.16 USD
Availability: InStock

Save $0.77

$1.93

$1.93 - $1.93

$1.93

$1.16

$1.16 - $1.16

$1.16

Dixon Valve
Hose Mender / Splicer | Hose Barb x Hose Barb

Specifications for Variant SKU: 1780404C Dixon
Series:	178 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Hose Barb, Some Ends Match
Material(s):	Brass

Construction:
Brass Lead-Free Brass: NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Safety Notes:
All standard hose fittings are intended for use with hose clamps or crimped ferrules.

Brass		Lead-Free Brass Part Number	Hose I.D.
Previous Part Number	Part Number	Lead-Free Brass Part Number	Hose I.D.
BM1	1780202C	-	1/8" x 1/8"
BM15	1780303C	-	3/16" x 3/16"
BM2-1	1780402C	-	1/4" x 1/8"
BM2	1780404C	1780404CLF	1/4" x 1/4"
BM25	1780505C	-	5/16" x 5/16"
BM3-2	1780604C	-	3/8" x 1/4"
BM3	1780606C	1780606CLF	3/8" x 3/8"
-	1780804C	-	1/2 x 1/4"
BM4-3	1780806C	-	1/2" x 3/8"
BM4	1780808C	1780808CLF	1/2" x 1/2"
BM5-3	1781006C	-	5/8" x 3/8"
BM5-4	1781008C	-	5/8" x 1/2"
BM5	1781010C	-	5/8" x 5/8"
BM6-4	1781208C	-	3/4" x 1/2"
BM6	1781212C	-	3/4" x 3/4"
-	1781612C	-	1" x 3/4"
BM8	1781616C	-	1" x 1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
