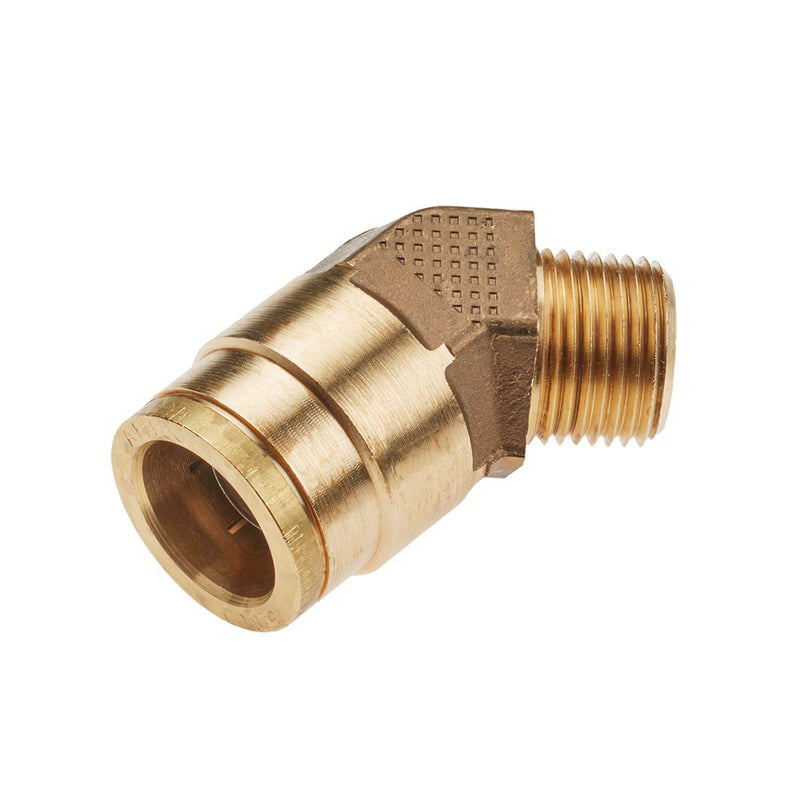

179PTCNS-6-8 by Parker | Threaded Fitting | 3/8" Rigid Push-to-Connect x 1/2" Male NPT Thread | 45° Elbow | Brass

179PTCNS-6-8 by Parker | Threaded Fitting | 3/8" Rigid Push-to-Connect x 1/2" Male NPT Thread | 45° Elbow | Brass

Save $2.02 Save $2.02
$24.71
$24.71 - $24.71
$24.71
$22.69
$22.69 - $22.69
$22.69

by Parker Hannifin
PTC Brass Fittings:Male Elbow Rigid 45° 179PTCNS
Specifications for Variant SKU: 179PTCNS-6-8 Parker
Series: 179PTCNS Series
Shape (Orientation): 45° Elbow
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread L N Wrench Flats
179PTCNS-4-2 1/4" 1/8" .74" .56" 9/16"
179PTCNS-4-4 1/4" 1/4" .74" .69" 9/16"
179PTCNS-6-2 3/8" 1/8" 1.06" .60" 9/16"
179PTCNS-6-4 3/8" 1/4" 1.06" .69" 9/16"
179PTCNS-6-6 3/8" 3/8" 1.06" .85" 9/16"
179PTCNS-6-8 3/8" 1/2" N/A N/A N/A
179PTCNS-8-4 1/2" 1/4" 1.15" .75" 13/16"
179PTCNS-8-6 1/2" 3/8" 1.15" .75" 13/16"
179PTCNS-8-8 1/2" 1/2" 1.15" 1.00" 13/16"
179PTCNS-10-6 5/8" 3/8" 1.20" .76" 7/8"
179PTCNS-10-8 5/8" 1/2" 1.21" .95" 7/8"
179PTCNS-12-8 3/4" 1/2" 1.33" 1.19" 1"
