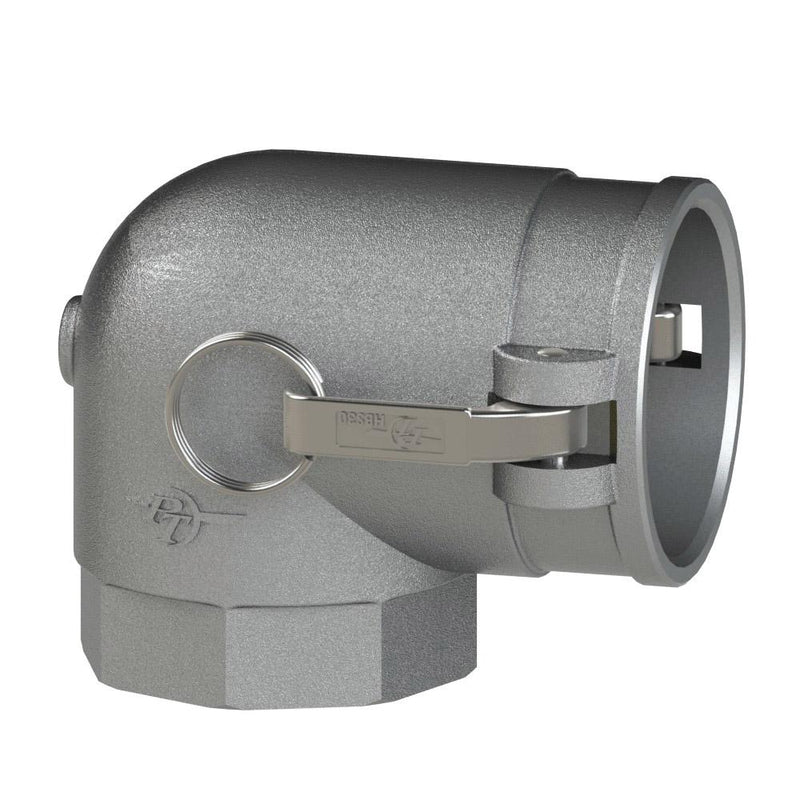

1800820 (20H) by PT-Coupling | Cam & Groove Adapter | Type H | 90° Elbow | 2" Female NPT x 2" Coupler | Ductile Iron | Buna-N Seal

1800820 (20H) by PT-Coupling | Cam & Groove Adapter | Type H | 90° Elbow | 2" Female NPT x 2" Coupler | Ductile Iron | Buna-N Seal

Save $31.22 Save $31.22
$84.13
$84.13 - $84.13
$84.13
$52.91
$52.91 - $52.91
$52.91

PT Coupling
Cam & Groove (Camlock) Adapter | Type H | 90° Elbow | Female NPT x Coupler | Ductile Iron | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 1800820 PT-Coupling
Shape (Orientation): 90 Degree Elbow
Cam Type: Type D
Ends Configuration: 2in Female NPT, 2in Female Cam & Groove
Material(s): Ductile Iron
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • Excellent abrasion and wear resistance. Good strength and toughness characteristics.
  • Ideal for use with sand, grout, cement, and other abrasives.
  • Made in the USA
Part
Name		 Item # Orientation Female NPT
Thread		 Coupler
Size		 Max. Allowable
Working Press.
(PSI)*
15H 1800815 90° 1-1/2" 1-1/2" 250 PSI
20H 1800820 90° 2" 2" 250 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
