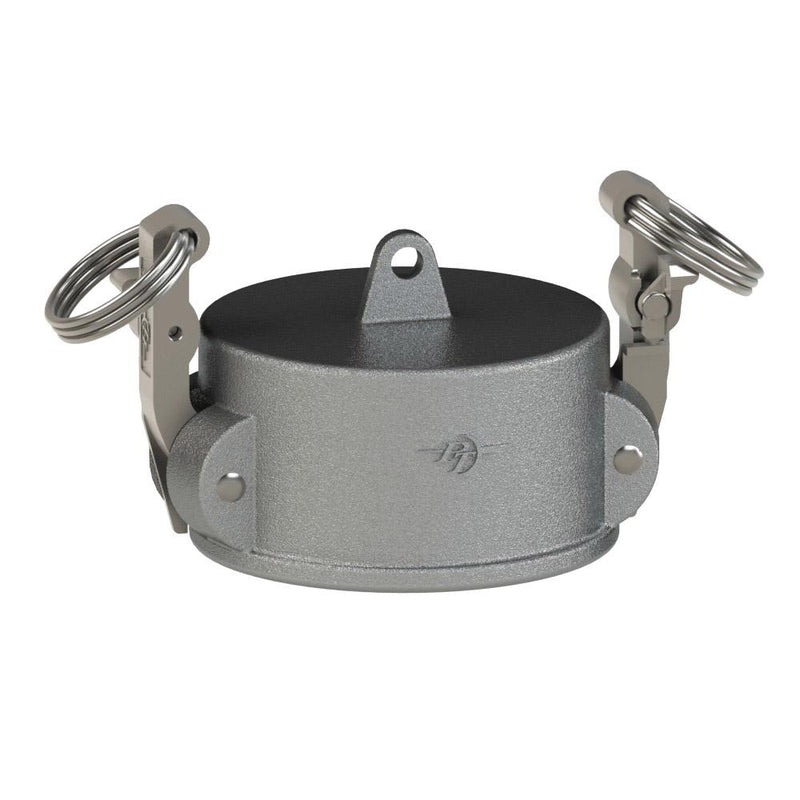

1801110L2 (10V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 1" Coupler | Ductile Iron

1801110L2 (10V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 1" Coupler | Ductile Iron

Save $6.26 Save $6.26
$56.33
$56.33 - $56.33
$56.33
$50.07
$50.07 - $50.07
$50.07

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | Ductile Iron

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 1801110L2 PT-Coupling
Series: STA-LOK II
Cam Type: Type DC
Ends Configuration: 1in Female Cam & Groove
Material(s): Ductile Iron
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • Excellent abrasion and wear resistance. Good strength and toughness characteristics.
  • Ideal for use with sand, grout, cement, and other abrasives.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*

10V SLII 1801110L2 1" 5.10" 2.44" 1.60" 0.62" 250 PSI

30V SLII 1801130L2 3" 9.56" 5.46" 2.27" 1.03" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
