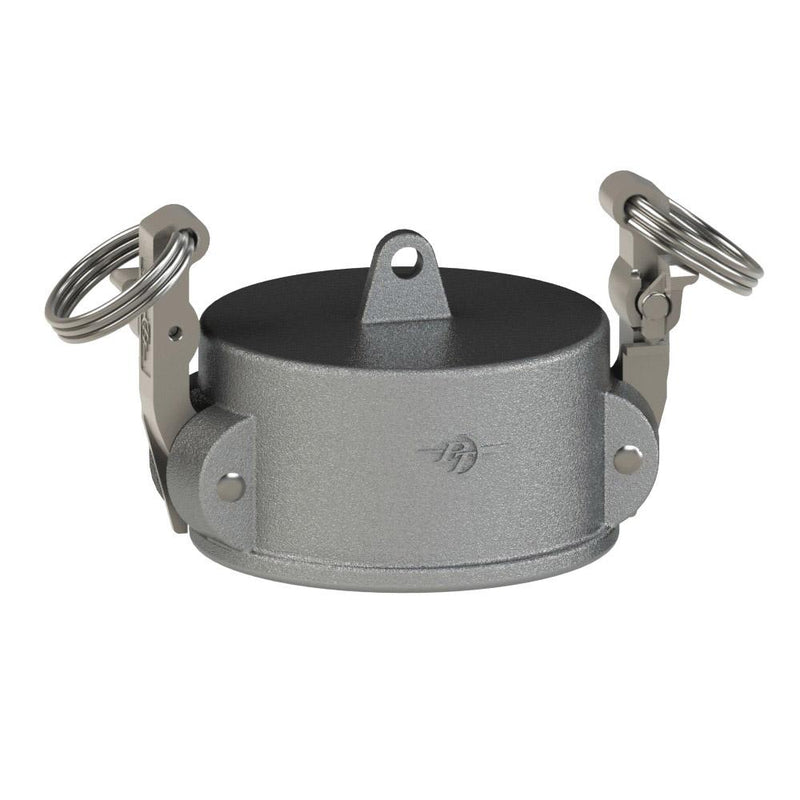

1801130L2 (30V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 3" Coupler | Ductile Iron

Name: 1801130L2 (30V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 3" Coupler | Ductile Iron
Brand: PT-Coupling
SKU: 1801130L2 PT-Coupling
Price: 51.91 USD
Availability: InStock

Save $6.49

$58.40

$58.40 - $58.40

$58.40

$51.91

$51.91 - $51.91

$51.91

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | Ductile Iron

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1801130L2 PT-Coupling
Series:	STA-LOK II
Cam Type:	Type DC
Ends Configuration:	3in Female Cam & Groove
Material(s):	Ductile Iron

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Made in the USA


Part Name	Item #	Coupler Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
10V SLII	1801110L2	1"	5.10"	2.44"	1.60"	0.62"	250 PSI
30V SLII	1801130L2	3"	9.56"	5.46"	2.27"	1.03"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
