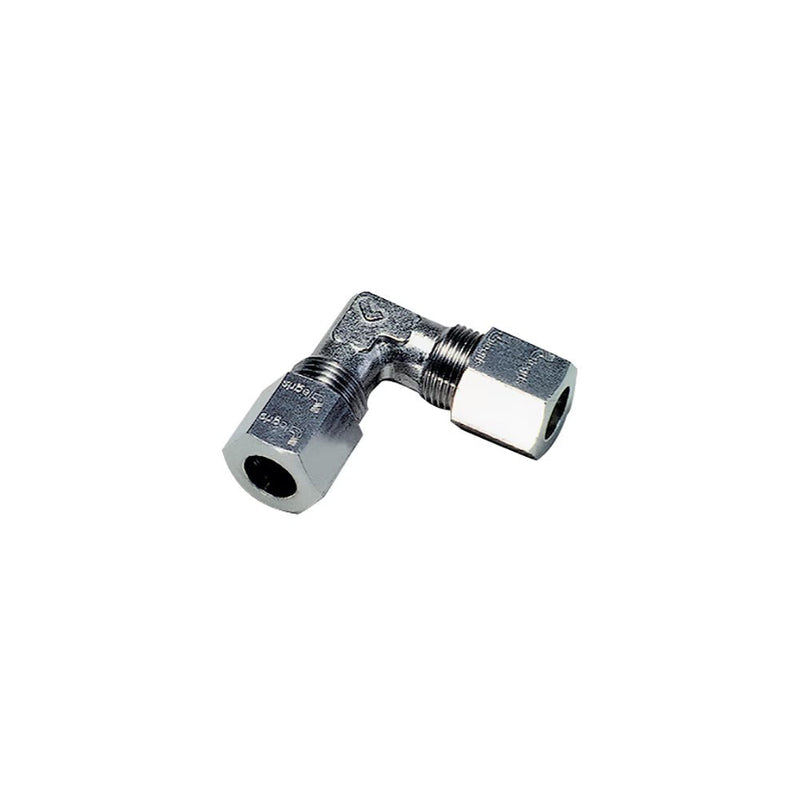

1802 10 00 by Parker | Legris Tube-to-Tube Fitting | 10 mm Tube Size x 10 mm Tube Size | 19 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

Save $186.83

$467.07

$467.07 - $467.07

$467.07

$280.24

$280.24 - $280.24

$280.24

by Parker Hannifin
Stainless Steel Compression Fittings / Tube-to-Tube Fittings:1802 Equal Elbow

Package Quantity: 2 Units

Specifications for Variant SKU: 1802 10 00 Parker \| 2 \|
Series:	1802 Series
Shape (Orientation):	90° Elbow
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD	F	J	L (max)	L1	Kg
1802 06 00	6 mm	13 mm	8 mm	25.5 mm	13.5 mm	.027 Kg
1802 08 00	8 mm	14 mm	10 mm	28.5 mm	14.5 mm	.034 Kg
1802 10 00	10 mm	19 mm	12 mm	32.5 mm	16 mm	.070 Kg
