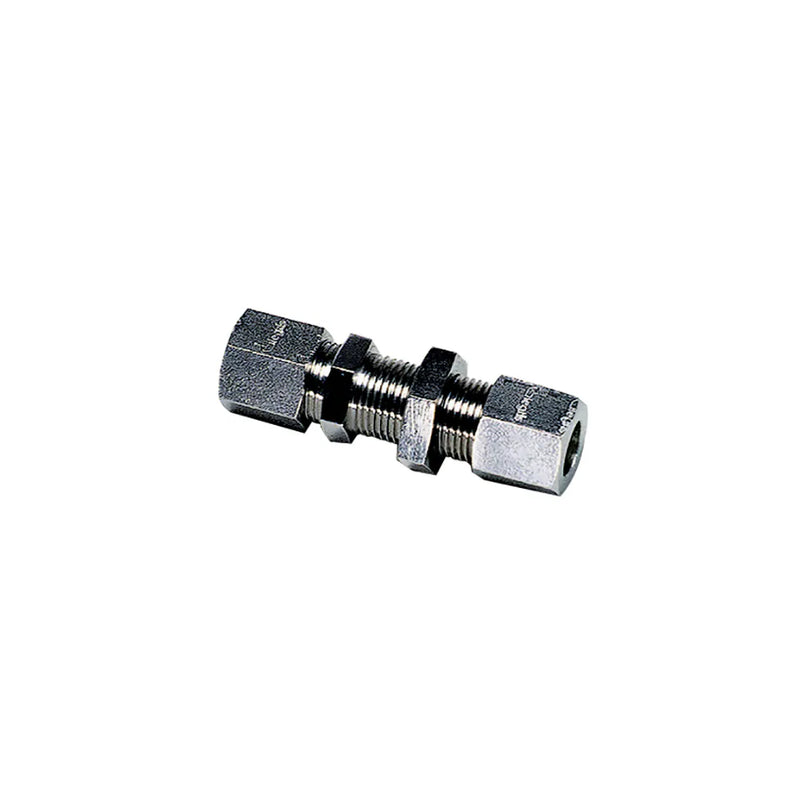

1816 08 00 by Parker | Legris Bulkhead Connector | 8mm Tube Size x 8mm Tube Size | 14mm Hex (F) | 14mm Hex (F1) | 49mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $155.07

$387.68

$387.68 - $387.68

$387.68

$232.61

$232.61 - $232.61

$232.61

by Parker Hannifin
Stainless Steel Compression Fittings / Tube-to-Tube Fittings:1816 Equal Bulkhead Connector

Package Quantity: 2 Units

Specifications for Variant SKU: 1816 08 00 Parker \| 2 \|
Series:	1816 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD	F	F1	L (max)	L1 (max)	L2	L3	ØT (min)	Kg
1816 08 00	8 mm	14 mm	14 mm	29 mm	20 mm	7.5 mm	17 mm	10.5 mm	.034 Kg
1816 10 00	10 mm	19 mm	19 mm	33 mm	25 mm	9 mm	19 mm	16.5 mm	.093 Kg
