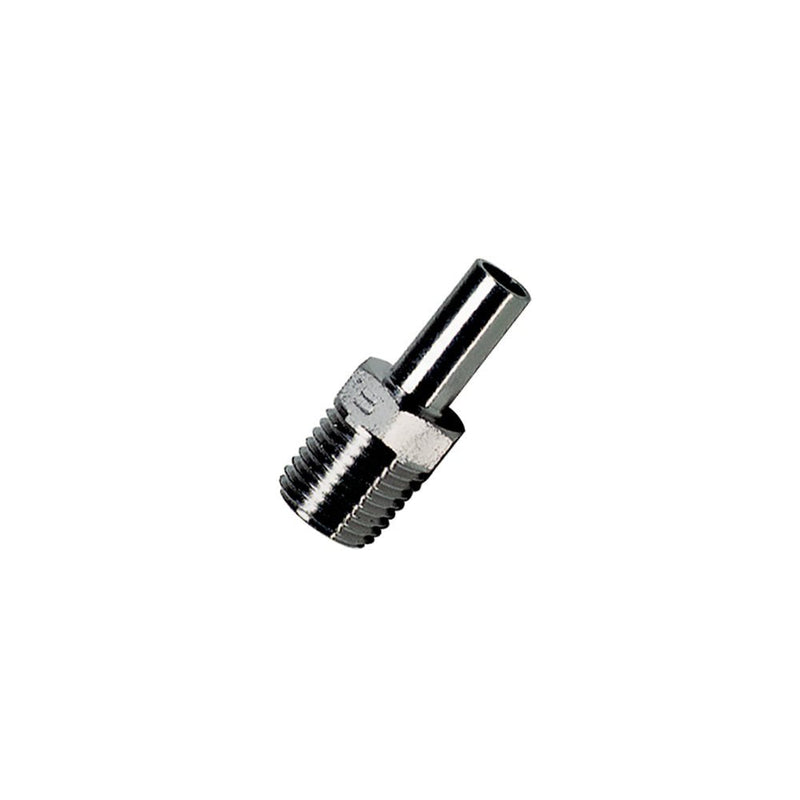

1820 08 11 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Male NPT Thread | 12 mm Hex | 28.5 mm Length | 316L Stainless Steel | Pack of 2

Save $45.65

$114.13

$114.13 - $114.13

$114.13

$68.48

$68.48 - $68.48

$68.48

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1820 Stem Adaptor, Male NPT Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 1820 08 11 Parker \| 2 \|
Series:	1820 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD	C	F	L	L1	Kg
1820 08 11	8 mm	1/8"	12 mm	28.5 mm	17 mm	.009 Kg
1820 08 14	8 mm	1/4"	14 mm	33 mm	17 mm	.019 Kg
1820 10 14	10 mm	1/4"	14 mm	36 mm	20 mm	.018 Kg
