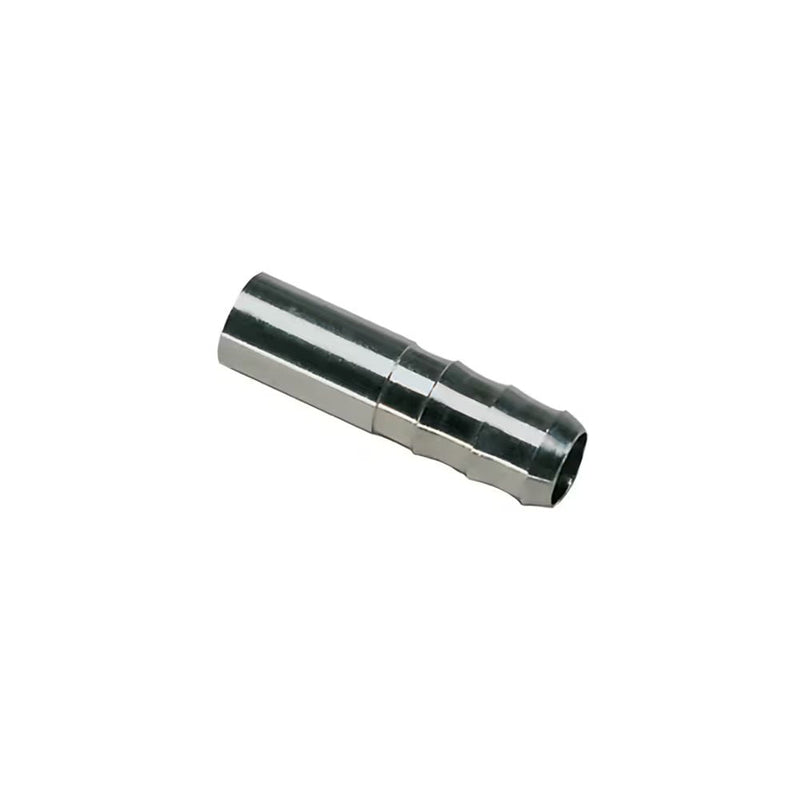

1822 08 10 by Parker | Complementary Fittings | 10 mm Tube Size x 12.5 mm Hose Barb | 40 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $16.97

$125.96

$125.96 - $125.96

$125.96

$108.99

$108.99 - $108.99

$108.99

by Parker Hannifin
Stainless Steel Compression Fittings / Complementary Fittings:1822 Barb Adaptor for Hose

Package Quantity: 2 Units

Specifications for Variant SKU: 1822 08 10 Parker \| 2 \|
Series:	1822 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD1	ØD2	ØD3	L	L1	ØT (min)	Kg
1822 08 06	8 mm	6 mm	8 mm	40 mm	22.5 mm	5 mm	.007 Kg
1822 08 07	8 mm	7 mm	9 mm	40 mm	22.5 mm	6 mm	.007 Kg
1822 08 10	8 mm	10 mm	12.5 mm	40 mm	22.5 mm	9 mm	.011 Kg
1822 10 07	10 mm	7 mm	9 mm	43 mm	22.5 mm	6 mm	.009 Kg
1822 10 10	10 mm	10 mm	12.5 mm	43 mm	22.5 mm	9 mm	.012 Kg
