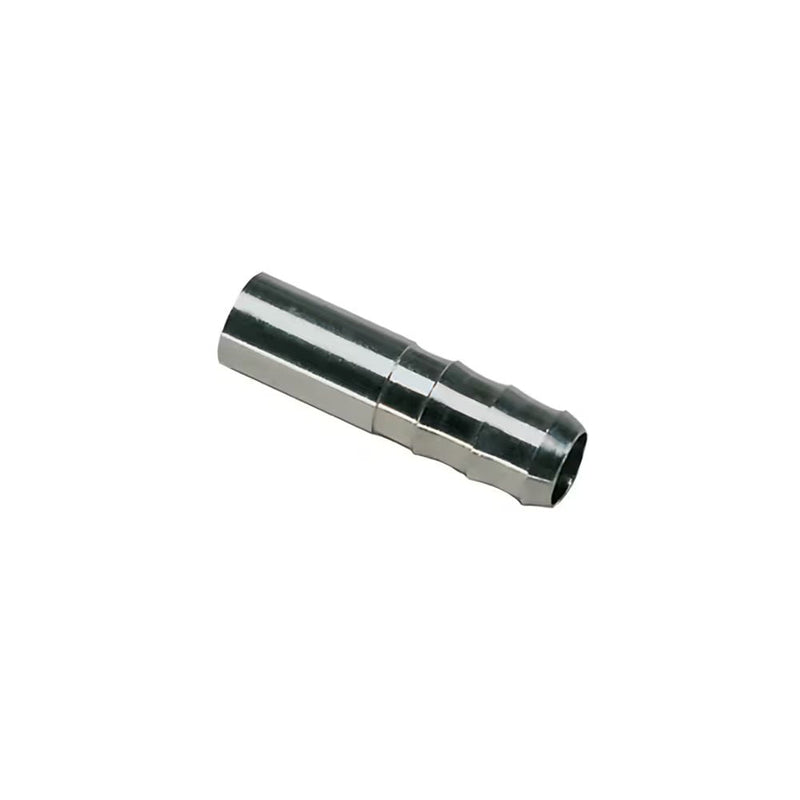

1822 10 10 by Parker | Complementary Fittings | 10 mm Tube Size x 12.5 mm Hose Barb | 43 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $15.89

$115.62

$115.62 - $115.62

$115.62

$99.73

$99.73 - $99.73

$99.73

by Parker Hannifin
Stainless Steel Compression Fittings / Complementary Fittings:1822 Barb Adaptor for Hose

Package Quantity: 2 Units

Specifications for Variant SKU: 1822 10 10 Parker \| 2 \|
Series:	1822 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD1	ØD2	ØD3	L	L1	ØT (min)	Kg
1822 08 06	8 mm	6 mm	8 mm	40 mm	22.5 mm	5 mm	.007 Kg
1822 08 07	8 mm	7 mm	9 mm	40 mm	22.5 mm	6 mm	.007 Kg
1822 08 10	8 mm	10 mm	12.5 mm	40 mm	22.5 mm	9 mm	.011 Kg
1822 10 07	10 mm	7 mm	9 mm	43 mm	22.5 mm	6 mm	.009 Kg
1822 10 10	10 mm	10 mm	12.5 mm	43 mm	22.5 mm	9 mm	.012 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
