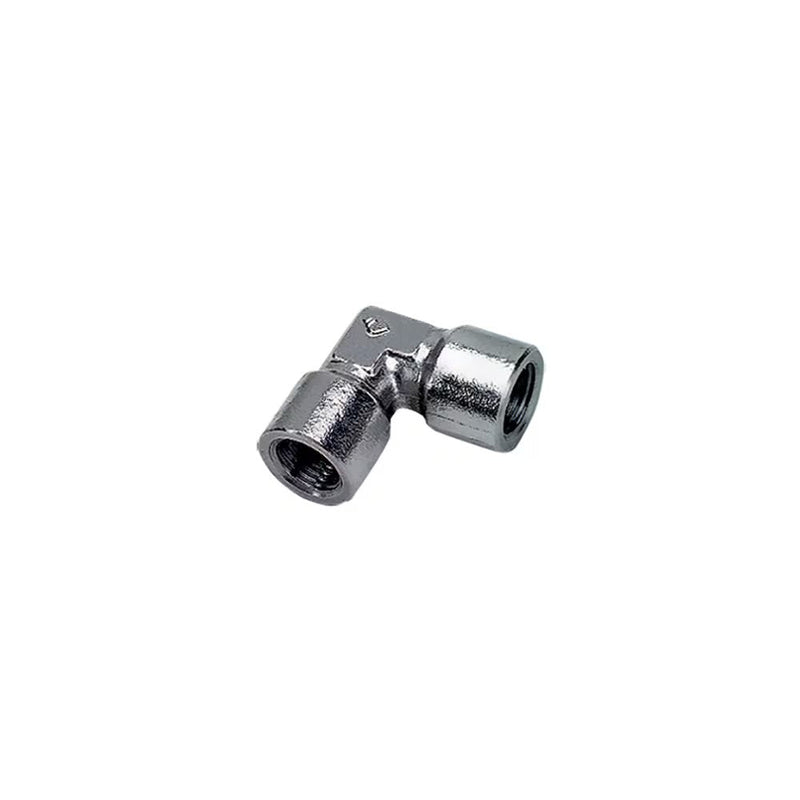

1843 27 27 by Parker | Legris Equal | 3/4" Female BSPP Thread | 90° Elbow | 316L Stainless Steel

1843 27 27 by Parker | Legris Equal | 3/4" Female BSPP Thread | 90° Elbow | 316L Stainless Steel

Save $163.89 Save $163.89
$409.73
$409.73 - $409.73
$409.73
$245.84
$245.84 - $245.84
$245.84

by Parker Hannifin
Stainless Steel Adapters:1843 Equal Elbow, Female BSPP Thread
Specifications for Variant SKU: 1843 27 27 Parker
Series: 1843 Series
Shape (Orientation): 90° Elbow
Material(s): 316L Stainless Steel
Adapters and Manifolds:
Part Number C E G J L Kg
1843 10 10 1/8" 7.5 mm 17.5 mm 12 mm 22.5 mm .041 Kg
1843 13 13 1/4" 11 mm 18.5 mm 15 mm 26.5 mm .053 Kg
1843 17 17 3/8" 11.5 mm 23.5 mm 18 mm 29 mm .075 Kg
1843 21 21 1/2" 15 mm 28 mm 23 mm 38 mm .158 Kg
1843 27 27 3/4" 16.5 mm 33 mm 22 mm 43.5 mm .209 Kg
1843 34 34 1" 19 mm 40 mm 32 mm 52 mm .465 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
