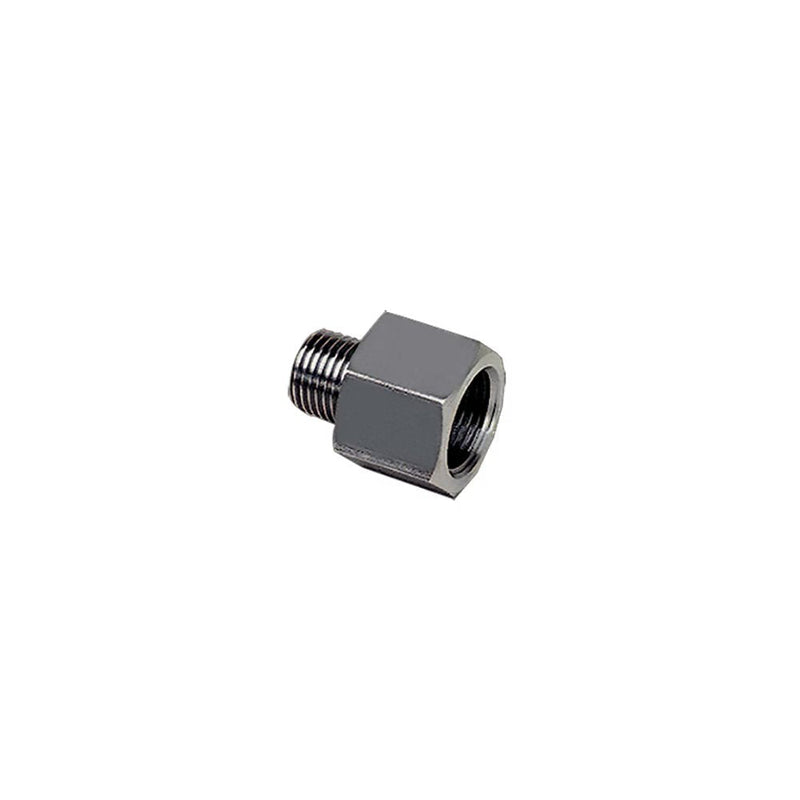

1861 27 34 by Parker | Legris Increaser | 3/4" Male BSPT Thread x 1" Female BSPP Thread | 41 mm Hex | 43.5 mm Length | Straight | 316L Stainless Steel

$74.05 - $74.05

$74.05

$97.15

$97.15 - $97.15

$97.15

by Parker Hannifin
Stainless Steel Adapters:1861 Increaser, Male BSPT/Female BSPP Thread

Quantity

Specifications for Variant SKU: 1861 27 34 Parker
Series:	1861 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel


Adapters and Manifolds:


Part Number	C1	C2	E	F	L	Kg
1861 10 13	1/8"	1/4"	11 mm	17 mm	24 mm	.022 Kg
1861 13 17	1/4"	3/8"	11.5 mm	22 mm	28.5 mm	.042 Kg
1861 13 21	1/4"	1/2"	15 mm	27 mm	32.5 mm	.069 Kg
1861 17 21	3/8"	1/2"	15 mm	27 mm	33 mm	.069 Kg
1861 21 27	1/2"	3/4"	16.5 mm	32 mm	38 mm	.093 Kg
1861 27 34	3/4"	1"	19 mm	41 mm	43.5 mm	.181 Kg
