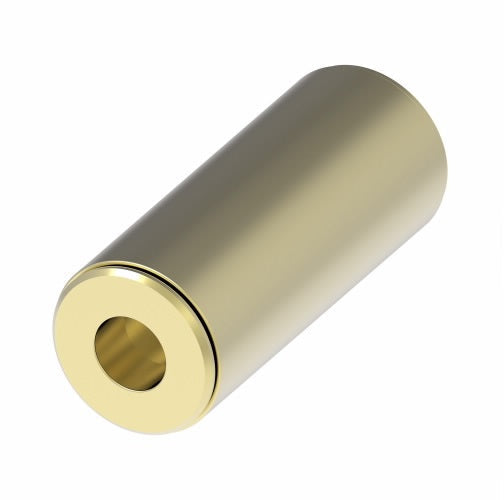

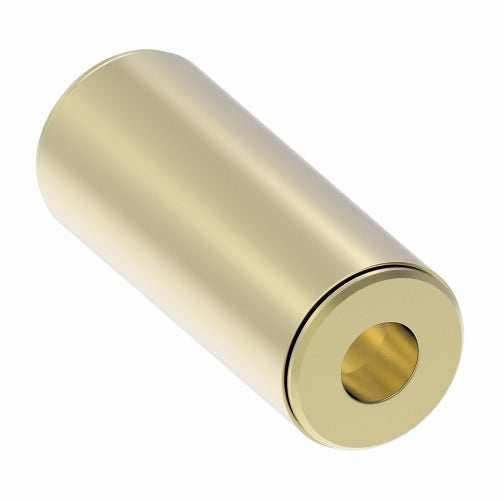

1862X8 by Danfoss | Quick Connect Air Brake Adapter | Union | 1/2" Tube OD x 1/2" Tube OD | Brass

1862X8 by Danfoss | Quick Connect Air Brake Adapter | Union | 1/2" Tube OD x 1/2" Tube OD | Brass

Name: 1862X8 by Danfoss | Quick Connect Air Brake Adapter | Union | 1/2" Tube OD x 1/2" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: 1862X8 Danfoss
Price: 13.3 USD
Availability: InStock

$13.30 - $13.30

$13.30

$13.30 - $13.30

$13.30

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Union

Specifications for Variant SKU: 1862X8 Danfoss
Material(s):	Brass
Compatible with the following Series:	3270 Series \| 4247 Series \| 4245 Series

Applications:
Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. Not for fuel, water or oil.
Advantages:
Easy, fast assembly. One piece fitting. Reusable. Field Serviceable. Moderate vibration resistance.
Used With:
SAE J844 Type A and B. Danfoss / Eaton Air Brake Tubing.
Material:
CA360 Brass (Body & Collet). EP (Ethylene Propylene) - O-Ring.
Pressure:
Vacuum to 150 PSI
Temperature Range:
-40°F to +200°F (-40°C to +93°C)
Conformance:
Ref. SAE No. AA0101 Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Quick Connect Air Brake Fitting Assembly & Disassembly Guide.PDF


Brass Part Number	Tube O.D.	Diameter C	L
1862X2.5	5/32"	0.44"	1.41"
1862X3	3/16"	0.44"	1.62"
1862X4	1/4"	0.53"	1.62"
1862X6	3/8"	0.69"	1.94"
1862X8	1/2"	0.83"	1.96"
1862X10	5/8"	0.96"	2.51"
