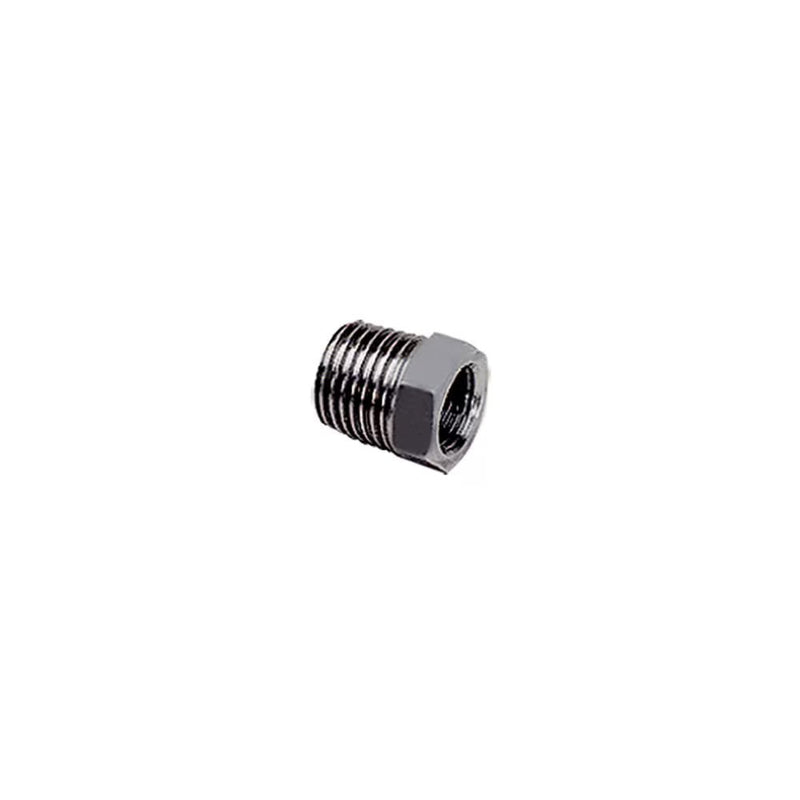

1863 13 10 by Parker | Legris Reducer | 1/4" Male BSPT Thread x 1/8" Female BSPP Thread | 14 mm Hex | 16 mm Length | Straight | 316L Stainless Steel

1863 13 10 by Parker | Legris Reducer | 1/4" Male BSPT Thread x 1/8" Female BSPP Thread | 14 mm Hex | 16 mm Length | Straight | 316L Stainless Steel | Pack of 2

$72.39 - $72.39
$72.39
$94.99
$94.99 - $94.99
$94.99

by Parker Hannifin
Stainless Steel Adapters:1863 Reducer, Male BSPT/Female BSPP Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 1863 13 10 Parker | 2 |
Series: 1867 Series
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Adapters and Manifolds:
Part Number C1 C2 F L Kg
1863 13 10 1/4" 1/8" 14 mm 16 mm .008 Kg
1863 17 10 3/8" 1/8" 17 mm 16.5 mm .019 Kg
1863 17 13 3/8" 1/4" 17 mm 16.5 mm .011 Kg
1863 21 13 1/2" 1/4" 22 mm 21 mm .035 Kg
1863 21 17 1/2" 3/8" 22 mm 21 mm .023 Kg
1863 34 27 1" 3/4" 36 mm 28.5 mm .084 Kg
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
