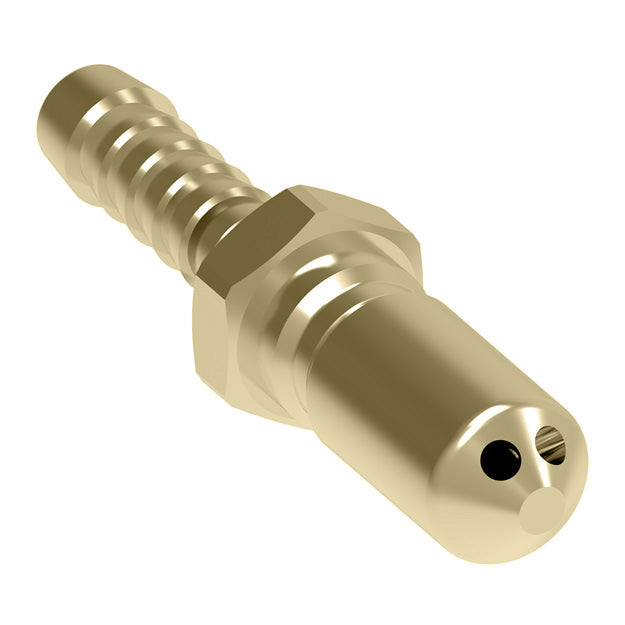

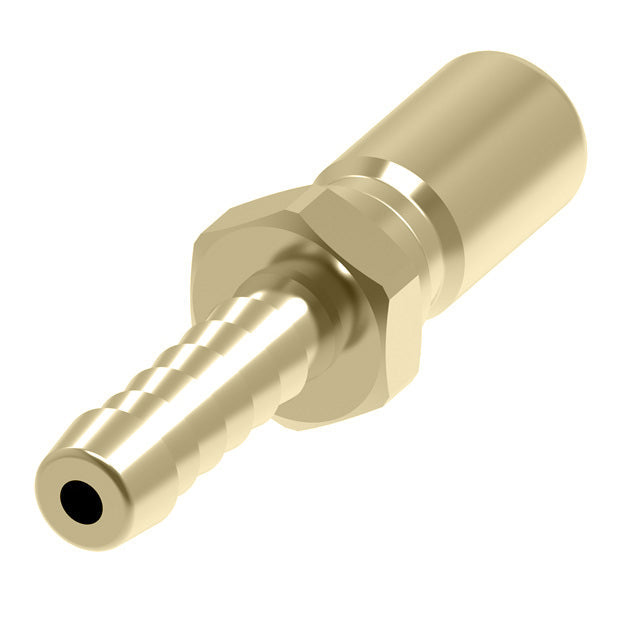

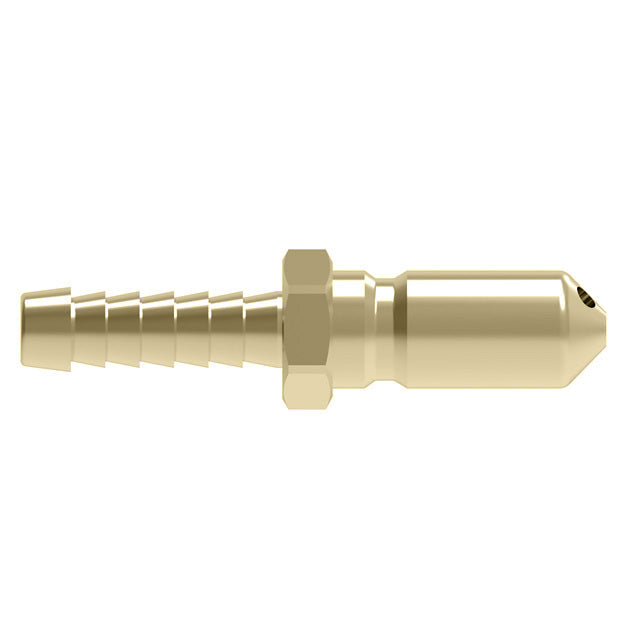

187 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | Hose Barb End | 1/8" Hose ID x 1/8" Body Size | Plug | Brass
187 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | Hose Barb End | 1/8" Hose ID x 1/8" Body Size | Plug | Brass
187 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | Hose Barb End | 1/8" Hose ID x 1/8" Body Size | Plug | Brass
187 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | Hose Barb End | 1/8" Hose ID x 1/8" Body Size | Plug | Brass

187 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | Hose Barb End | 1/8" Hose ID x 1/8" Body Size | Plug | Brass

$35.86 - $35.86
$35.86
$35.86 - $35.86
$35.86

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 180/280 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 180/280 series miniature ball lock quick disconnect couplings are designed for use with compressed air, gases and liquids.

Series 180 an 280 sockets/females mate with all Series 180 plugs/males
Specifications for Variant SKU: 187 Danfoss
Brand: Hansen
Series: 180/280 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Series 180 sockets/females have a tire valve.
  • Series 280 sockets/females have a 1HK valve, which provides higher flow capacity.
  • Note: Interchange is proprietary to Danfoss.
Applications & Markets:
  • Recreation and Entertainment
  • Breathing Air
  • General Pneumatics
  • Pharmaceutical
  • Laboratory Uses
  • Medical
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
180 1/8" 48 bar 700 psi 192 bar 2,800 psi 71 lpm 2.5 scfm
280 1/8" 207 bar 3,000 psi 828 bar 1,200 psi 283 lpm 10 scfm
Plug/Male
(Figure 1)
Plug/Male
(Figure 2)
180/280 Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
C D
187 Plug/Male 1/8" 1/8" Hose Barb 1 1.25"
(31.8mm)		 0.38"
(9.7mm)
189 Plug/Male 1/8" 3/16" Hose Barb 2 1.50"
(38.1mm)		 0.38"
(9.7mm)
