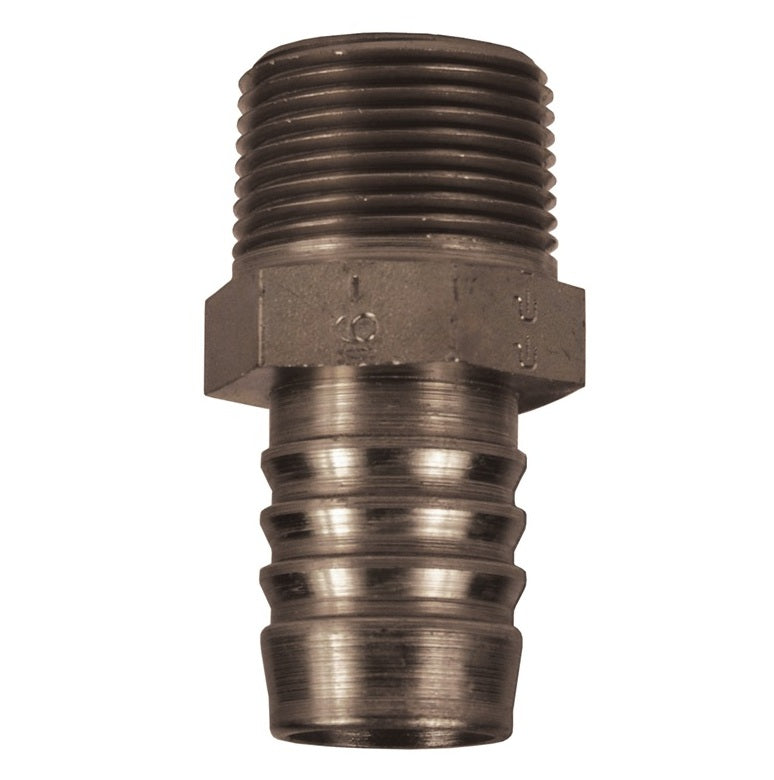

188-12 by Dixon Valve | Hydraulic Suction & Return Line Hose Stem | 3/4" Male NPTF x 3/4" Hose ID | Plated Steel

188-12 by Dixon Valve | Hydraulic Suction & Return Line Hose Stem | 3/4" Male NPTF x 3/4" Hose ID | Plated Steel

Save $8.93 Save $8.93
$22.33
$22.33 - $22.33
$22.33
$13.40
$13.40 - $13.40
$13.40

Dixon Valve
Hydraulic Suction and Return Line Hose Coupling | Male NPTF

Designed for hydraulic suction line applications using SAE100R4 hydraulic hose.
Specifications for Variant SKU: 188-12 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male NPTF
Material(s): Plated Steel
Features:
  • Barbs provide easy assembly and maximum gripping action.
  • NOTE: Return line clamps must be used with these fittings.
Materials:
  • Plated Steel
Plated Steel
Part Number		 Hose I.D. Male NPTF
188-12 3/4" 3/4"-14
188-16 1" 1"-11-1/2
188-20 1-1/4" 1-1/4"-11-1/2
188-24 1-1/2" 1-1/2"-11-1/2
188-32 2" 2"-11-1/2
