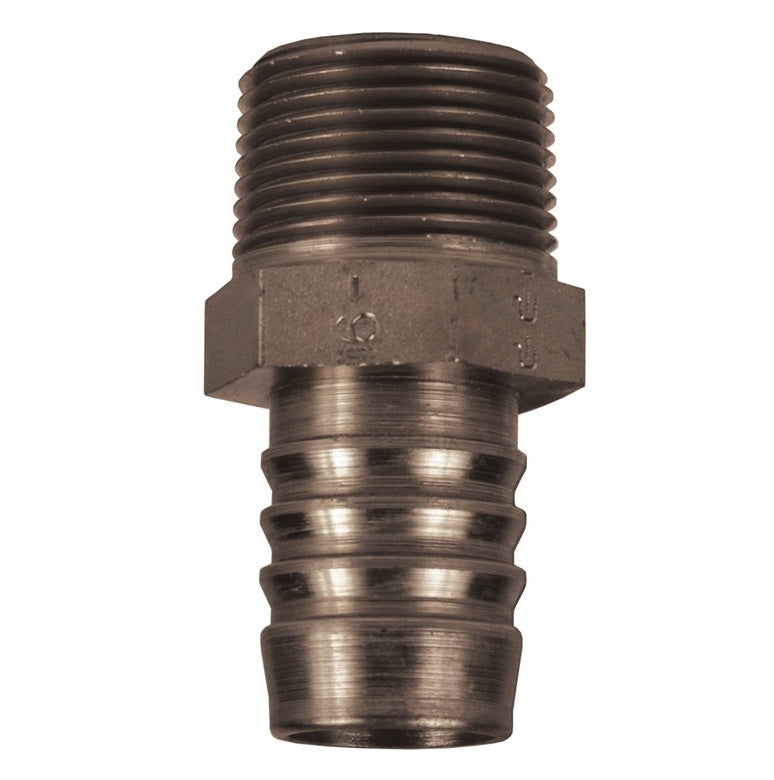

188-32 by Dixon Valve | Hydraulic Suction & Return Line Hose Stem | 2" Male NPTF x 2" Hose ID | Plated Steel

188-32 by Dixon Valve | Hydraulic Suction & Return Line Hose Stem | 2" Male NPTF x 2" Hose ID | Plated Steel

Save $87.71 Save $87.71
$219.28
$219.28 - $219.28
$219.28
$131.57
$131.57 - $131.57
$131.57

Dixon Valve
Hydraulic Suction and Return Line Hose Coupling | Male NPTF

Designed for hydraulic suction line applications using SAE100R4 hydraulic hose.
Specifications for Variant SKU: 188-32 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Hose Barb, 2in Male NPTF
Material(s): Plated Steel
Features:
  • Barbs provide easy assembly and maximum gripping action.
  • NOTE: Return line clamps must be used with these fittings.
Materials:
  • Plated Steel
Plated Steel
Part Number		 Hose I.D. Male NPTF
188-12 3/4" 3/4"-14
188-16 1" 1"-11-1/2
188-20 1-1/4" 1-1/4"-11-1/2
188-24 1-1/2" 1-1/2"-11-1/2
188-32 2" 2"-11-1/2

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
