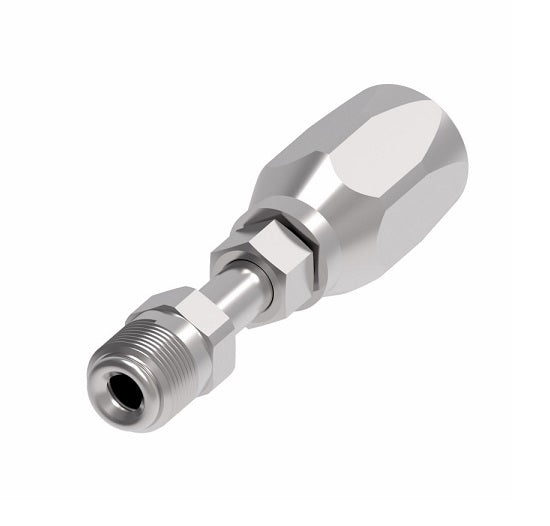

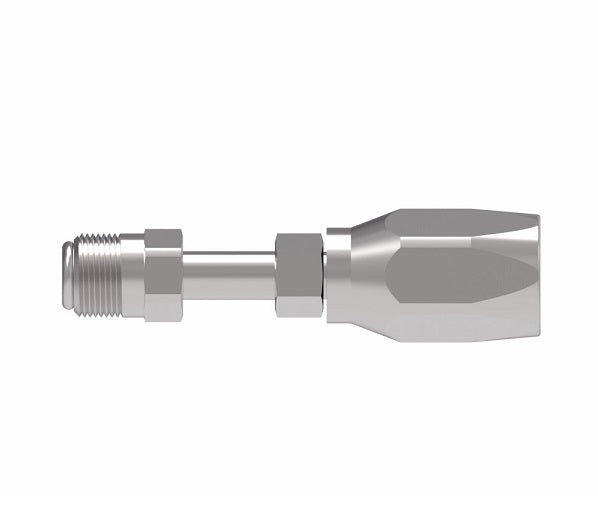

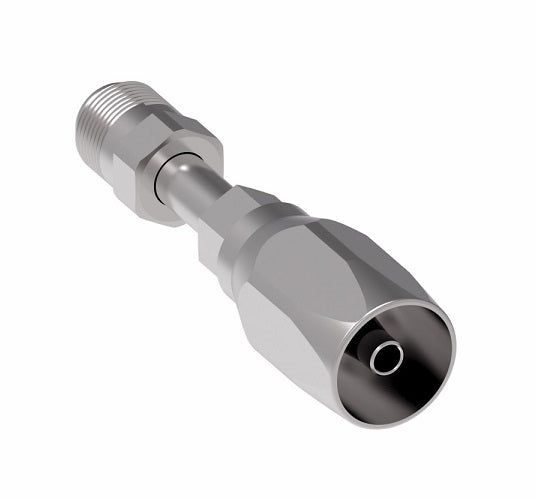

190111-4S Aeroquip by Danfoss | SAE Male Inverted Flare 100R5 Reusable Hose Fitting | -04 SAE Male Inverted Flare x -04 Reusable Hose End | Steel

190111-4S Aeroquip by Danfoss | SAE Male Inverted Flare 100R5 Reusable Hose Fitting | -04 SAE Male Inverted Flare x -04 Reusable Hose End | Steel

Name: 190111-4S Aeroquip by Danfoss | SAE Male Inverted Flare 100R5 Reusable Hose Fitting | -04 SAE Male Inverted Flare x -04 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190111-4S Danfoss
Price: 21.2 USD
Availability: InStock

$21.20 - $21.20

$21.20

$21.20 - $21.20

$21.20

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - SAE Male Inverted Flare - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190111-4S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male Inverted Flare, 1/4in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
190111-4S	-04	7/16-24	2.46"	1.71"	0.13"
190111-5S	-05	1/2-20	2.62"	1.84"	0.18"
190111-5-6S	-06	1/2-20	2.72"	1.82"	0.24"
190111-6S	-06	5/8-18	2.72"	1.82"	0.24"
190111-7-6S	-06	-	-	-	-
190111-6-8S	-08	5/8-18	3.13"	1.98"	0.28"
190111-8S	-08	3/4-18	3.20"	2.05"	0.36"
190111-10S	-10	7/8-18	3.56"	2.28"	0.45"
