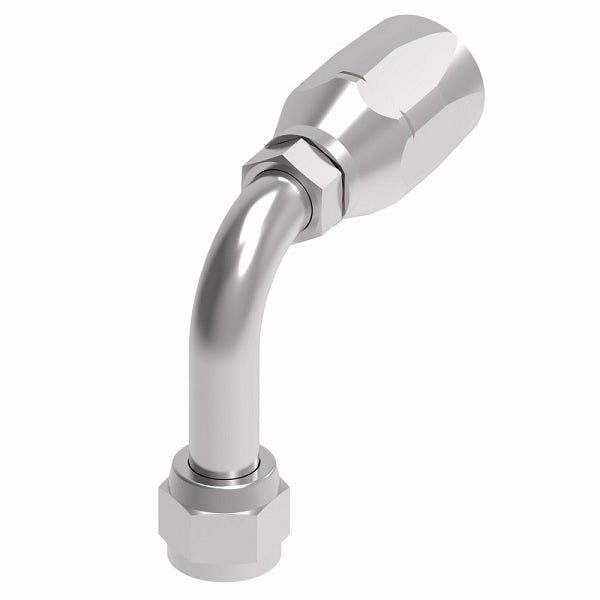

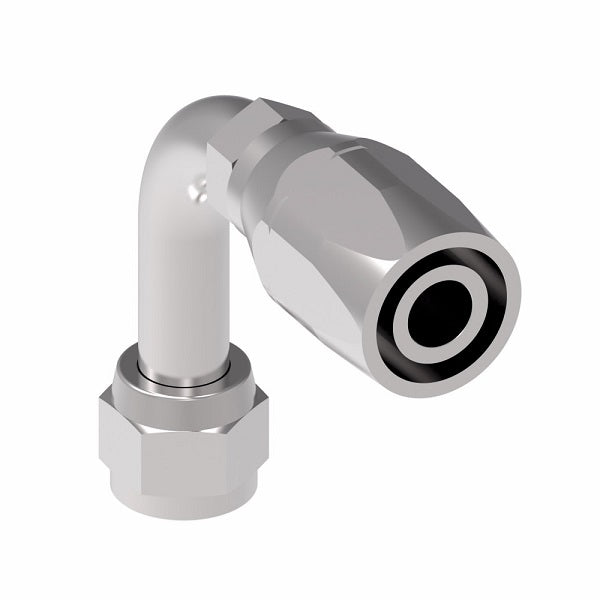

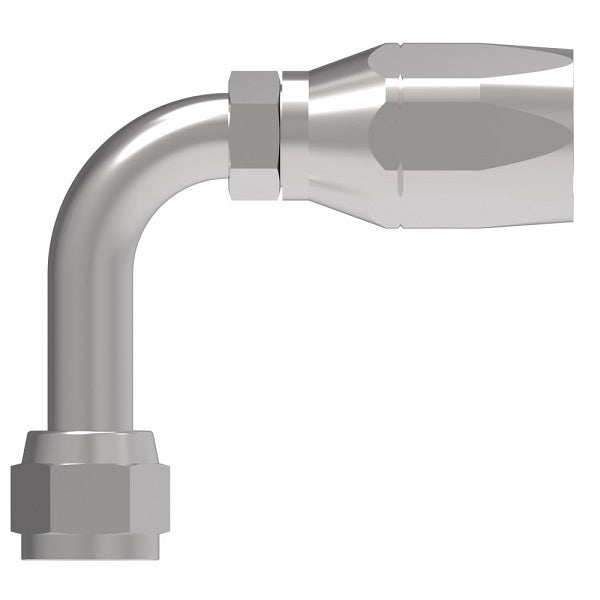

190295-10-12S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -12 Reusable Hose End | Steel
190295-10-12S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -12 Reusable Hose End | Steel | Pack of 10
190295-10-12S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -12 Reusable Hose End | Steel | Pack of 10
190295-10-12S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -12 Reusable Hose End | Steel

190295-10-12S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -12 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$574.00 - $574.00
$574.00
$574.00 - $574.00
$574.00

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female Universal Swivel Long Drop - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190295-10-12S Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 3/4in Reusable Hose End, 5/8in Female SAE 45 Flare
Material(s): Steel
Special Properties: Long Drop, Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190295-4S -04 7/16-20 1.74" 0.99" 0.13" 1.80"
190295-5S -05 1/2-20 1.96" 1.18" 0.18" 1.77"
190295-8S -08 3/4-16 2.88" 1.73" 0.36" 2.43"
190295-10S -10 7/8-14 3.19" 1.90" 0.46" 2.57"
190295-10-12S -12 7/8-14 3.49" 1.92" 0.48" 2.57"
