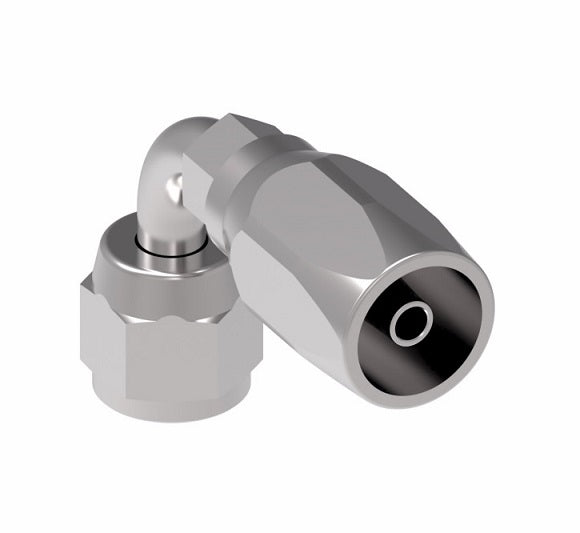

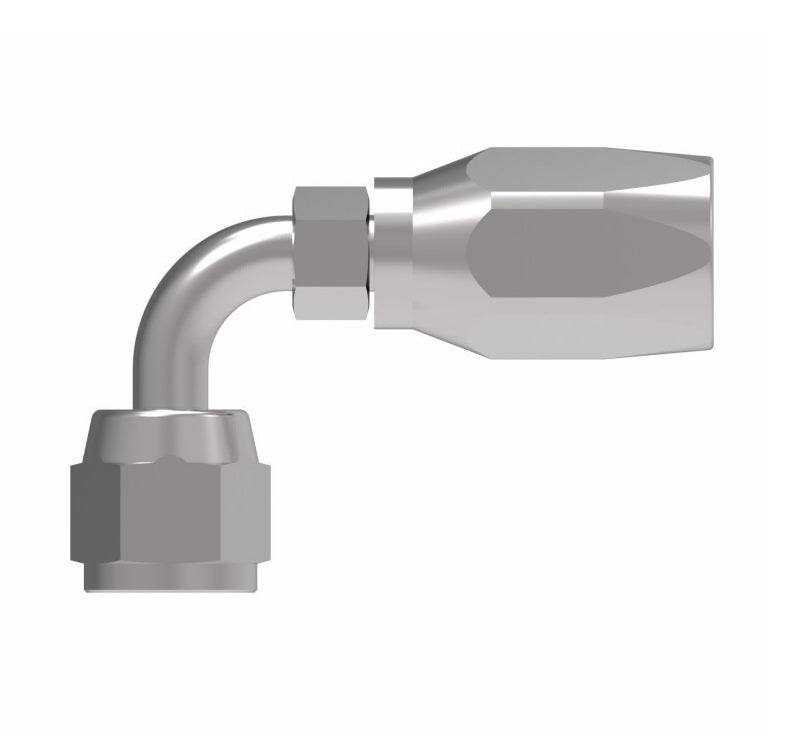

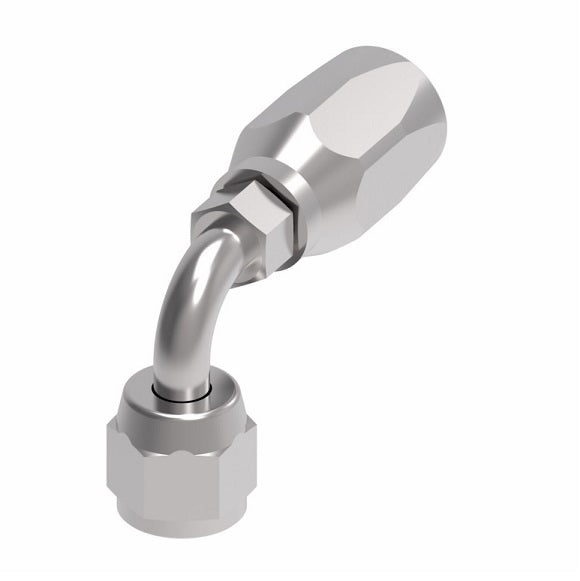

190296-4S Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Reusable Hose End | Steel
190296-4S Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Reusable Hose End | Steel
190296-4S Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Reusable Hose End | Steel
190296-4S Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Reusable Hose End | Steel

190296-4S Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Reusable Hose End | Steel

$26.80 - $26.80
$26.80
$26.80 - $26.80
$26.80

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female Universal Swivel Short Drop - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190296-4S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Reusable Hose End, 1/4in Female SAE 45 Flare
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190296-4S -04 7/16-20 1.74" 0.99" 0.13" 0.68"
190296-5S -05 1/2-20 1.96" 1.18" 0.17" 0.77"
190296-8S -08 3/4-16 2.76" 1.61" 0.36" 1.09"
190296-8-10S -10 3/4-16 2.91" 1.62" 0.39" 1.09"
190296-10S -10 7/8-14 2.94" 1.65" 0.46" 1.23"
190296-10-12S -12 7/8-14 3.24" 1.67" 0.48" 1.23"
