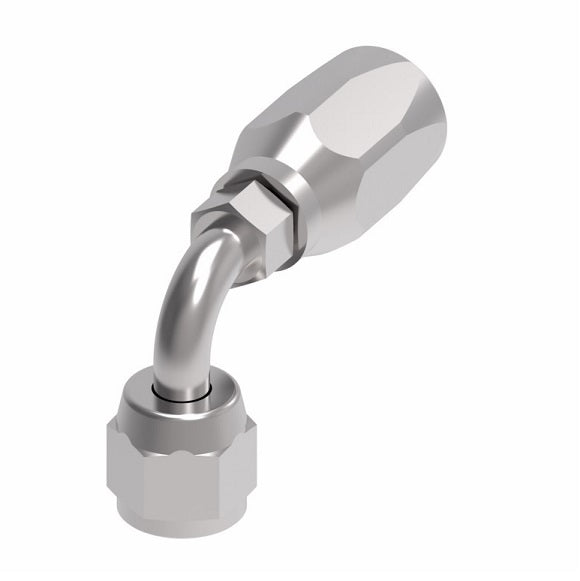

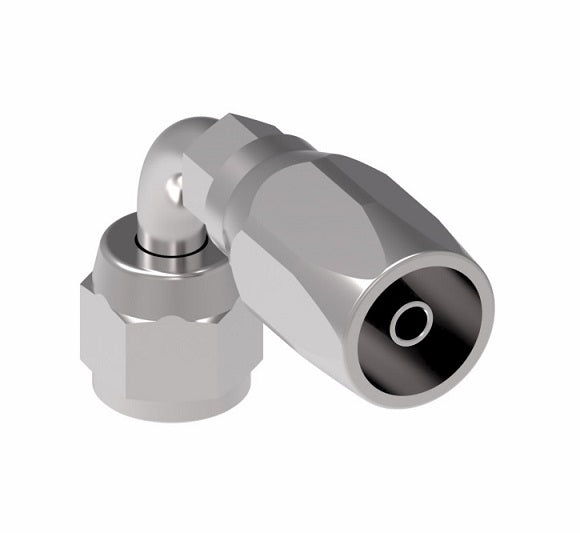

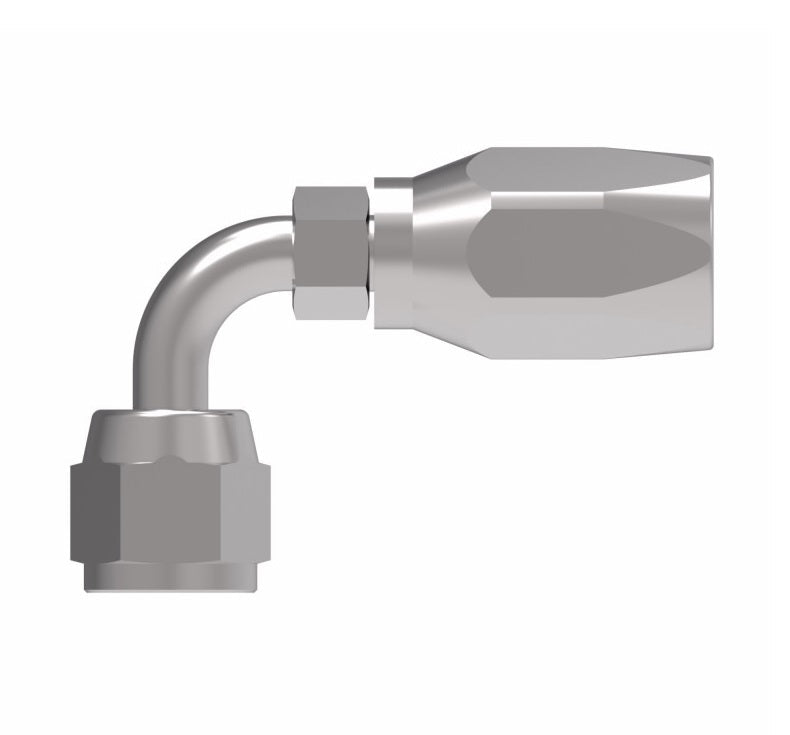

190296-8-10s Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Reusable Hose End | Steel
190296-8-10s Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Reusable Hose End | Steel | Pack of 10
190296-8-10s Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Reusable Hose End | Steel | Pack of 10
190296-8-10s Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Reusable Hose End | Steel

190296-8-10s Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,101.60 - $1,101.60
$1,101.60
$1,101.60 - $1,101.60
$1,101.60

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female Universal Swivel Short Drop - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190296-8-10s Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 5/8in Reusable Hose End, 1/2in Female SAE 45 Flare
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190296-4S -04 7/16-20 1.74" 0.99" 0.13" 0.68"
190296-5S -05 1/2-20 1.96" 1.18" 0.17" 0.77"
190296-8S -08 3/4-16 2.76" 1.61" 0.36" 1.09"
190296-8-10S -10 3/4-16 2.91" 1.62" 0.39" 1.09"
190296-10S -10 7/8-14 2.94" 1.65" 0.46" 1.23"
190296-10-12S -12 7/8-14 3.24" 1.67" 0.48" 1.23"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
