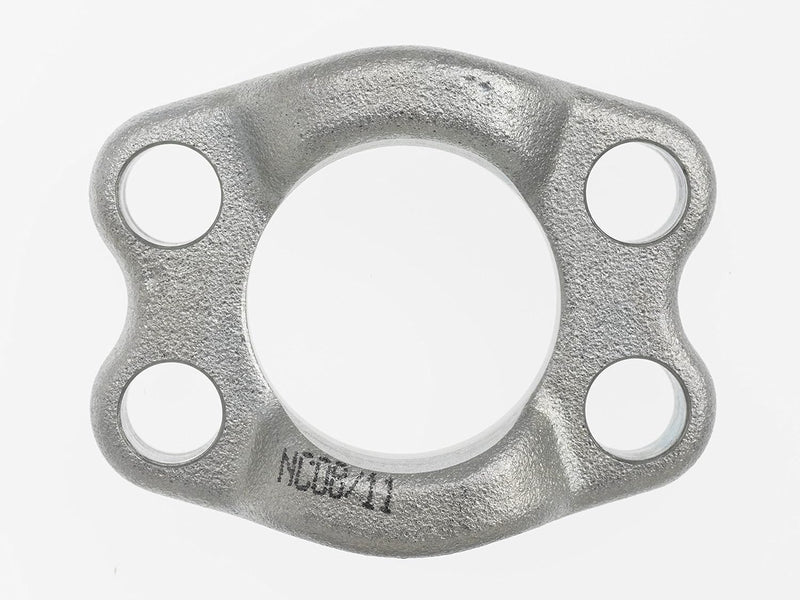

1903-61-20 by Brennan Inc. | -20 Captive Flange with Drilled Holes | Code 61 | Steel

1903-61-20 by Brennan Inc. | -20 Captive Flange with Drilled Holes | Code 61 | Steel

$10.23 - $10.23
$10.23
$12.97
$12.97 - $12.97
$12.97

Brennan Inc.
Flange Fittings: 1903-61 / 1904-61 - Captive Flange with Drilled Holes and Threaded/Tapped Holes (Code 61)
Specifications for Variant SKU: 1903-61-20 Brennan
Ends Configuration: 1-1/4in Code 61 Flange
Material(s): Steel
Part NumberDrilledHoles Part NumberTappedHoles Material FlangeSize A±.010 B±.010 C±.030 D±.010 E±.010 F±.010 FThread G±.030 H±.010 J±.010 K±.010 L±.010 M±.005
1903-61-08 - Steel 1/2" 1.500" 0.750" 2.120" 0.688" 0.344" 0.344" 5/16-18" 1.810" 1.219" 0.955" 0.750" 0.500" 0.245"
1903-61-12 1904-61-12 Steel 3/4" 1.875" 0.938" 2.560" 0.875" 0.438" 0.406" 3/8-16" 2.060" 1.513" 1.265" 0.880" 0.560" 0.245"
1903-61-16 1904-61-16 Steel 1" 2.062" 1.031" 2.750" 1.031" 0.516" 0.406" 3/8-16" 2.310" 1.781" 1.515" 0.940" 0.620" 0.295"
1903-61-20 1904-61-20 Steel 1-1/4" 2.312" 1.156" 3.120" 1.188" 0.594" 0.469" 7/16-14" 2.880" 2.031" 1.720" 0.880" 0.560" 0.295"
1903-61-24 1904-61-24 Steel 1-1/2" 2.750" 1.375" 3.690" 1.406" 0.703" 0.531" 1/2-13" 3.250" 2.406" 2.000" 1.000" 0.620" 0.295"
1903-61-32 1904-61-32 Steel 2 3.062" 1.531" 4.000" 1.688" 0.844" 0.531" 1/2-13" 3.810" 2.844" 2.470" 1.030" 0.620" 0.355"
1903-61-40 1904-61-40 Steel 2-1/2" 3.500" 1.750" 4.500" 2.000" 1.000" 0.531" 1/2-13" 4.280" 3.344" 2.950" 1.500" 0.750" 0.355"
1903-61-48 - Steel 3" 4.188" 2.094" 5.310" 2.438" 1.219" 0.656" 5/8-11" 5.160" 4.031" 3.580" 1.620" 0.880" 0.355"
1903-61-56 - Steel 3-1/2" 4.750" 2.375" 6.000" 2.750" 1.375" 0.656" 5/8-11" 5.500" 4.531" 4.030" 1.120" 0.880" 0.422"
1903-61-64 - Steel 4 5.125" 2.562" 6.380" 3.062" 1.531" 0.656" 5/8-11" 6.000" 5.031" 4.530" 1.380" 1.000" 0.422"
