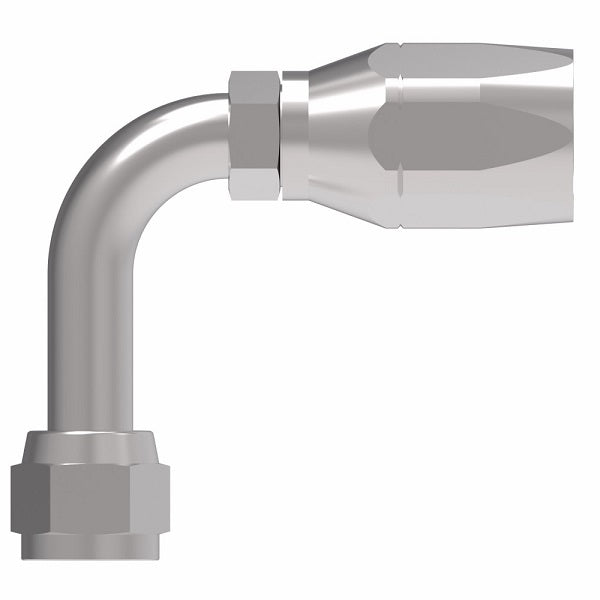

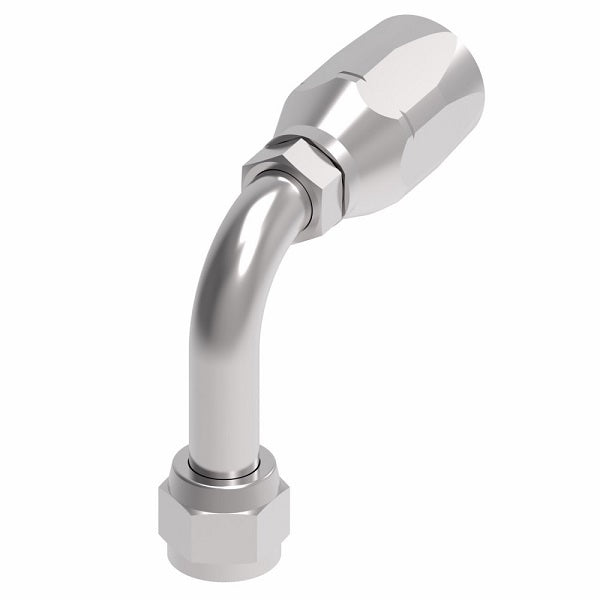

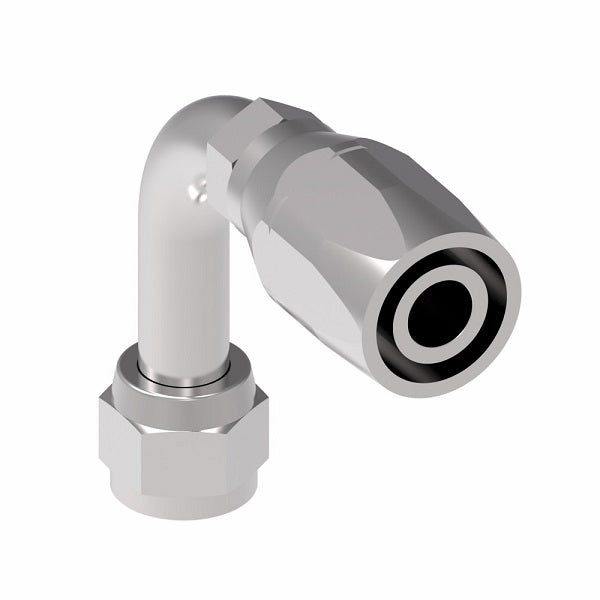

190301-12S Aeroquip by Danfoss | Female SAE 45° Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -12 Female SAE 45° Swivel x -12 Reusable Hose End | Steel

190301-12S Aeroquip by Danfoss | Female SAE 45° Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -12 Female SAE 45° Swivel x -12 Reusable Hose End | Steel | Pack of 10

$863.25 - $863.25

$863.25

$863.25 - $863.25

$863.25

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female SAE 45° Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 190301-12S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female SAE 45 Flare, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Long Drop, Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 Series \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190301-6S	-06	5/8-18	2.13"	1.23"	0.24"	2.18"
190301-12S	-12	1-1/16-14	3.74"	2.17"	0.55"	3.73"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
