190627-8-10C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -08 Male Pipe x -10 Reusable Hose End | Stainless Steel
190627-8-10C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -08 Male Pipe x -10 Reusable Hose End | Stainless Steel
190627-8-10C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -08 Male Pipe x -10 Reusable Hose End | Stainless Steel
190627-8-10C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -08 Male Pipe x -10 Reusable Hose End | Stainless Steel

190627-8-10C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -08 Male Pipe x -10 Reusable Hose End | Stainless Steel

$142.13 - $142.13
$142.13
$142.13 - $142.13
$142.13

Aeroquip® by Danfoss

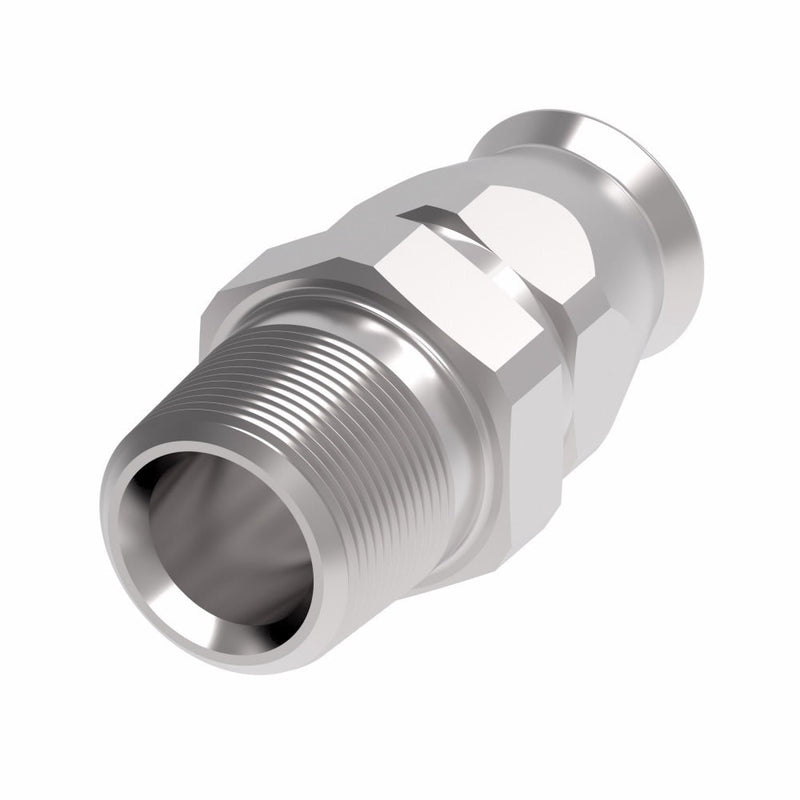

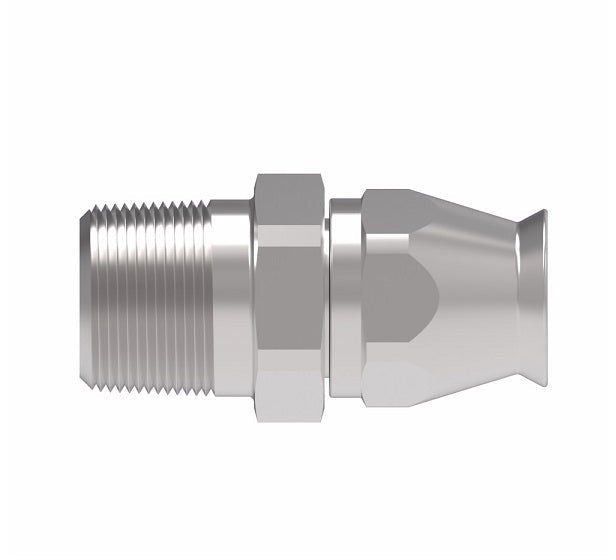

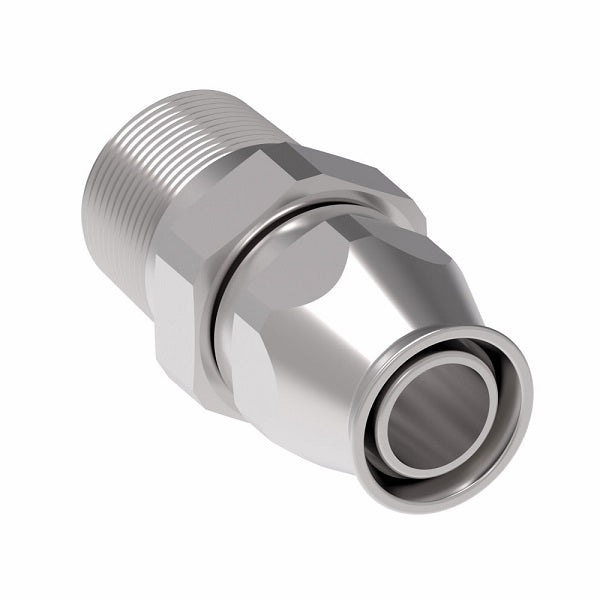

Super Gem Reusable Hose Fitting for PTFE Hose - Male Pipe - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190627-8-10C Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 5/8in Reusable Hose End
Material(s): Stainless Steel
Compatible with the following Series: 2807 Series  |   SC-TW Series  |   S-TW Series
Technical Info:
Steel & Brass
Part Number 		Stainless Steel
Part Number 		Hose Size Thread A D EØ Sleeve
Brass
Part Number 		Sleeve
Stainless Steel
Part Number
38-190627-2-4 190627-2-4C -04 1/8-27 1.35" 0.89" 0.16" 900568-4B 900568-4C
38-190627-4-4 - -04 1/4-18 1.54" 1.08" 0.16" 900568-4B 900568-4C
38-190627-4-5 - -05 1/4-18 1.58" 1.07" 0.23" 900568-5B 900568-5C
38-190627-4-6 - -06 1/4-18 1.66" 1.13" 0.28" 900568-6B 900568-6C
38-190627-6-6 190627-6-6C -06 3/8-18 1.66" 1.13" 0.28" 900568-6B 900568-6C
38-190627-6-8 - -08 3/8-18 1.79" 1.16" 0.38" 900568-8B 900568-8C
- 190627-8-8C -08 1/2-14 2.05" 1.41" 0.38 900568-8B 900568-8C
38-190627-8-10 190627-8-10C -10 1-1/2-14 2.13" 1.46" 0.47" 900568-10B 900568-10C
38-190627-12-12 190627-12-12C -12 3/4-14 2.26" 1.61" 0.59" 900568-12B 900568-12C
38-190627-16-16 - -16 1-11-1/2 2.48" 1.86" 0.83" 900568-16B 900568-16C
38-190627-20-20 - -20 1-1/4-11-1/2 2.83" 2.17" 1.06" 900568-20B -
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
