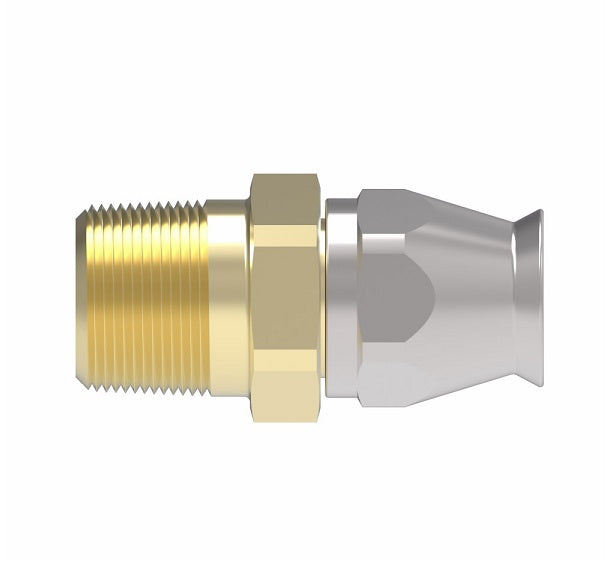

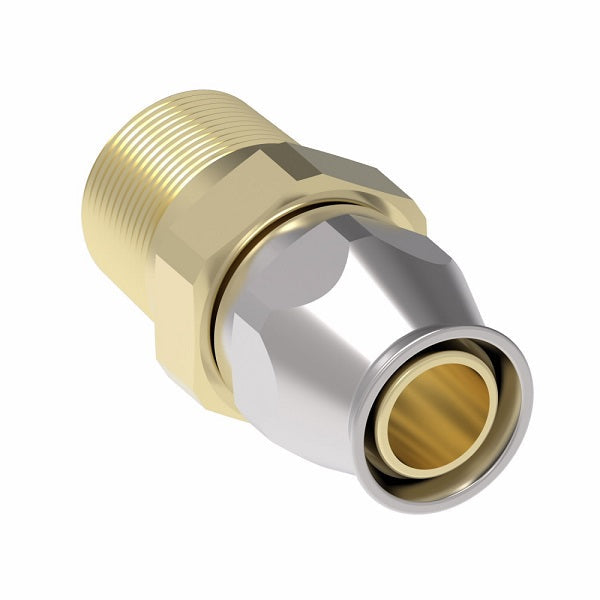

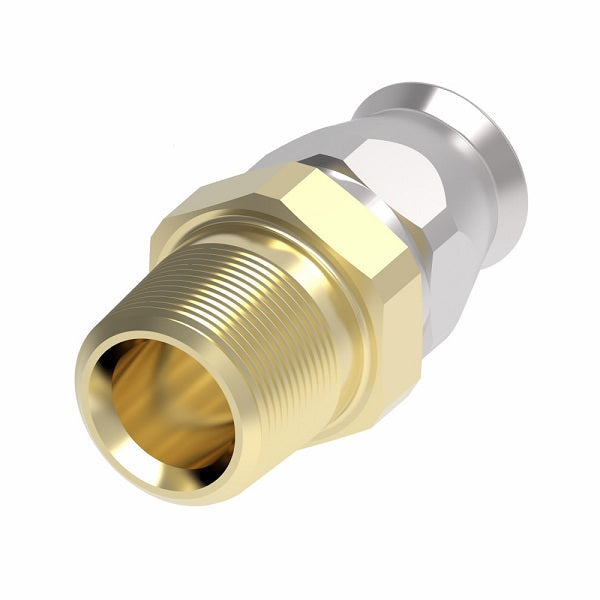

38-190627-20-20 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel & Brass
38-190627-20-20 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel & Brass
38-190627-20-20 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel & Brass
38-190627-20-20 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel & Brass

38-190627-20-20 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel & Brass

$141.66 - $141.66
$141.66
$141.66 - $141.66
$141.66

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Male Pipe - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 38-190627-20-20 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male NPT, 1-1/4in Reusable Hose End
Material(s): Steel, Brass
Compatible with the following Series: 2807 Series  |   SC-TW Series  |   S-TW Series
Technical Info:
Steel & Brass
Part Number 		Stainless Steel
Part Number 		Hose Size Thread A D EØ Sleeve
Brass
Part Number 		Sleeve
Stainless Steel
Part Number
38-190627-2-4 190627-2-4C -04 1/8-27 1.35" 0.89" 0.16" 900568-4B 900568-4C
38-190627-4-4 - -04 1/4-18 1.54" 1.08" 0.16" 900568-4B 900568-4C
38-190627-4-5 - -05 1/4-18 1.58" 1.07" 0.23" 900568-5B 900568-5C
38-190627-4-6 - -06 1/4-18 1.66" 1.13" 0.28" 900568-6B 900568-6C
38-190627-6-6 190627-6-6C -06 3/8-18 1.66" 1.13" 0.28" 900568-6B 900568-6C
38-190627-6-8 - -08 3/8-18 1.79" 1.16" 0.38" 900568-8B 900568-8C
- 190627-8-8C -08 1/2-14 2.05" 1.41" 0.38 900568-8B 900568-8C
38-190627-8-10 190627-8-10C -10 1-1/2-14 2.13" 1.46" 0.47" 900568-10B 900568-10C
38-190627-12-12 190627-12-12C -12 3/4-14 2.26" 1.61" 0.59" 900568-12B 900568-12C
38-190627-16-16 - -16 1-11-1/2 2.48" 1.86" 0.83" 900568-16B 900568-16C
38-190627-20-20 - -20 1-1/4-11-1/2 2.83" 2.17" 1.06" 900568-20B -
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
