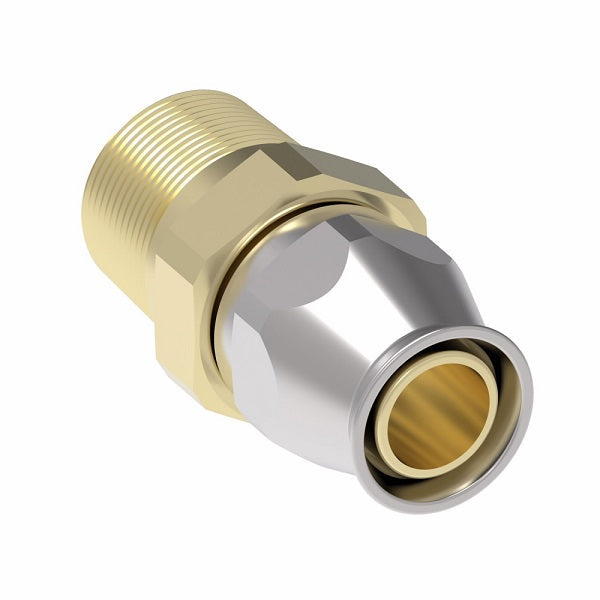

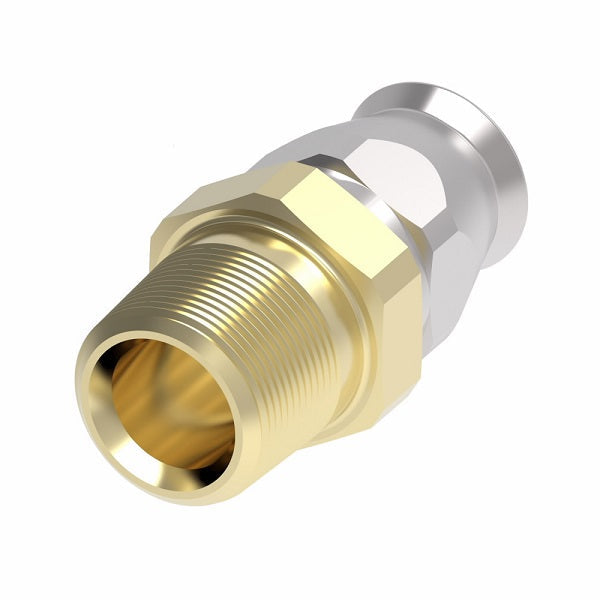

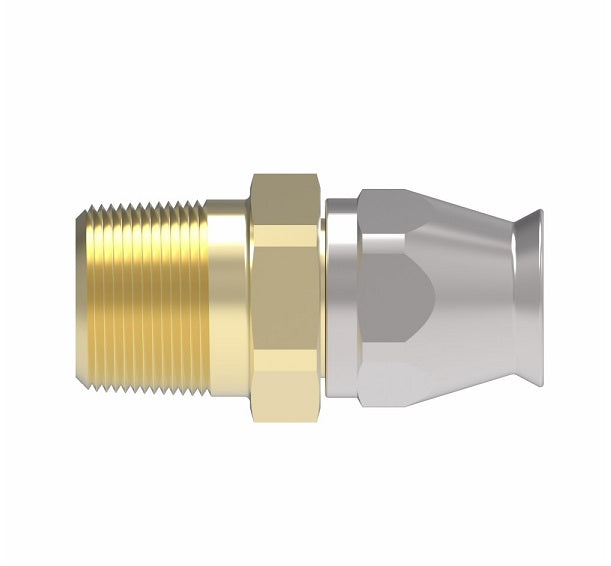

38-190627-4-4 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -04 Male Pipe x -04 Reusable Hose End | Steel & Brass
38-190627-4-4 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -04 Male Pipe x -04 Reusable Hose End | Steel & Brass
38-190627-4-4 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -04 Male Pipe x -04 Reusable Hose End | Steel & Brass
38-190627-4-4 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -04 Male Pipe x -04 Reusable Hose End | Steel & Brass

38-190627-4-4 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -04 Male Pipe x -04 Reusable Hose End | Steel & Brass

$17.34 - $17.34
$17.34
$17.34 - $17.34
$17.34

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Male Pipe - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 38-190627-4-4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Reusable Hose End
Material(s): Steel, Brass
Compatible with the following Series: 2807 Series  |   SC-TW Series  |   S-TW Series
Technical Info:
Steel & Brass
Part Number 		Stainless Steel
Part Number 		Hose Size Thread A D EØ Sleeve
Brass
Part Number 		Sleeve
Stainless Steel
Part Number
38-190627-2-4 190627-2-4C -04 1/8-27 1.35" 0.89" 0.16" 900568-4B 900568-4C
38-190627-4-4 - -04 1/4-18 1.54" 1.08" 0.16" 900568-4B 900568-4C
38-190627-4-5 - -05 1/4-18 1.58" 1.07" 0.23" 900568-5B 900568-5C
38-190627-4-6 - -06 1/4-18 1.66" 1.13" 0.28" 900568-6B 900568-6C
38-190627-6-6 190627-6-6C -06 3/8-18 1.66" 1.13" 0.28" 900568-6B 900568-6C
38-190627-6-8 - -08 3/8-18 1.79" 1.16" 0.38" 900568-8B 900568-8C
- 190627-8-8C -08 1/2-14 2.05" 1.41" 0.38 900568-8B 900568-8C
38-190627-8-10 190627-8-10C -10 1-1/2-14 2.13" 1.46" 0.47" 900568-10B 900568-10C
38-190627-12-12 190627-12-12C -12 3/4-14 2.26" 1.61" 0.59" 900568-12B 900568-12C
38-190627-16-16 - -16 1-11-1/2 2.48" 1.86" 0.83" 900568-16B 900568-16C
38-190627-20-20 - -20 1-1/4-11-1/2 2.83" 2.17" 1.06" 900568-20B -
