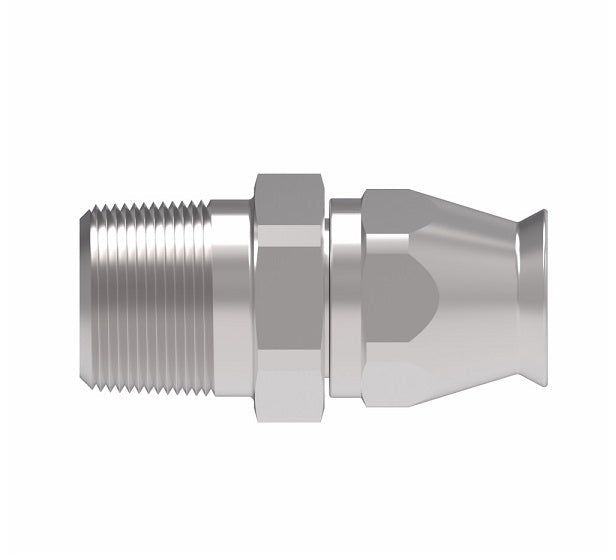

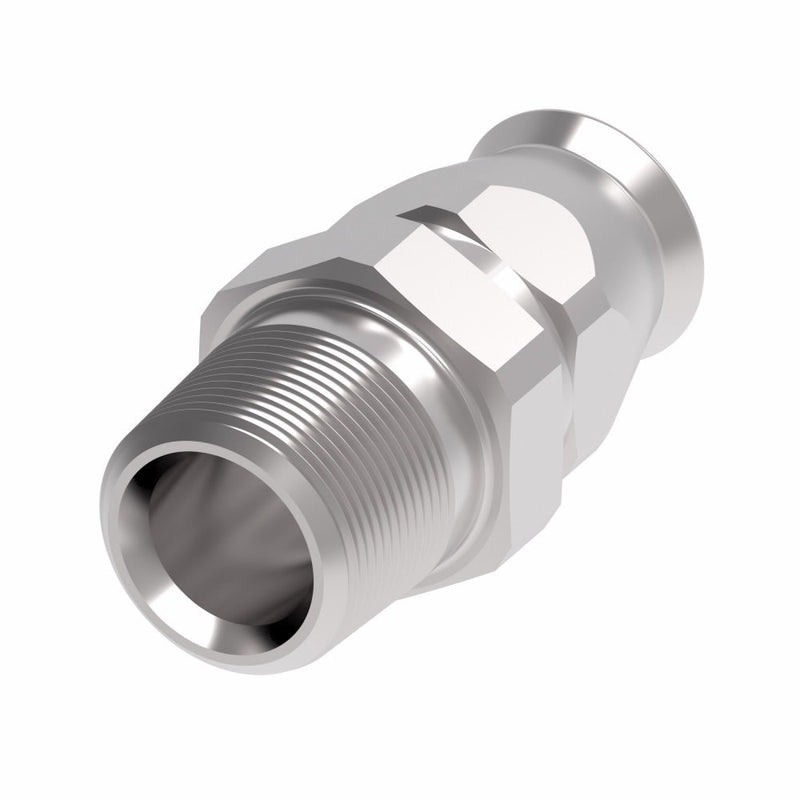

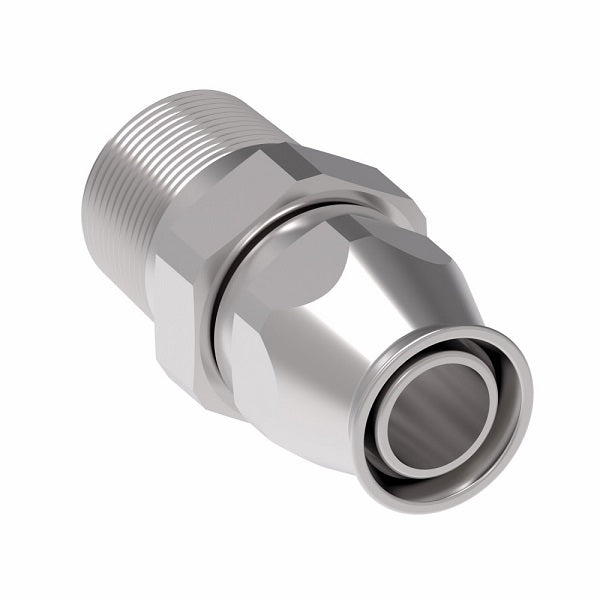

190627-12-12C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -12 Male Pipe x -12 Reusable Hose End | Stainless Steel

190627-12-12C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -12 Male Pipe x -12 Reusable Hose End | Stainless Steel

Name: 190627-12-12C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -12 Male Pipe x -12 Reusable Hose End | Stainless Steel
Brand: Danfoss/Eaton
SKU: 190627-12-12C Danfoss
Price: 151.25 USD
Availability: InStock

$151.25 - $151.25

$151.25

$151.25 - $151.25

$151.25

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190627-12-12C Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPT, 3/4in Reusable Hose End
Material(s):	Stainless Steel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Stainless Steel Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
38-190627-2-4	190627-2-4C	-04	1/8-27	1.35"	0.89"	0.16"	900568-4B	900568-4C
38-190627-4-4	-	-04	1/4-18	1.54"	1.08"	0.16"	900568-4B	900568-4C
38-190627-4-5	-	-05	1/4-18	1.58"	1.07"	0.23"	900568-5B	900568-5C
38-190627-4-6	-	-06	1/4-18	1.66"	1.13"	0.28"	900568-6B	900568-6C
38-190627-6-6	190627-6-6C	-06	3/8-18	1.66"	1.13"	0.28"	900568-6B	900568-6C
38-190627-6-8	-	-08	3/8-18	1.79"	1.16"	0.38"	900568-8B	900568-8C
-	190627-8-8C	-08	1/2-14	2.05"	1.41"	0.38	900568-8B	900568-8C
38-190627-8-10	190627-8-10C	-10	1-1/2-14	2.13"	1.46"	0.47"	900568-10B	900568-10C
38-190627-12-12	190627-12-12C	-12	3/4-14	2.26"	1.61"	0.59"	900568-12B	900568-12C
38-190627-16-16	-	-16	1-11-1/2	2.48"	1.86"	0.83"	900568-16B	900568-16C
38-190627-20-20	-	-20	1-1/4-11-1/2	2.83"	2.17"	1.06"	900568-20B	-
