Name: 190846-24S Aeroquip by Danfoss | SAE Code 61 Split Flange 30° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -24 Code 61 Split Flange x -24 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190846-24S Danfoss
Price: 225.32 USD
Availability: InStock

$225.32 - $225.32

$225.32

$225.32 - $225.32

$225.32

Aeroquip® by Danfoss

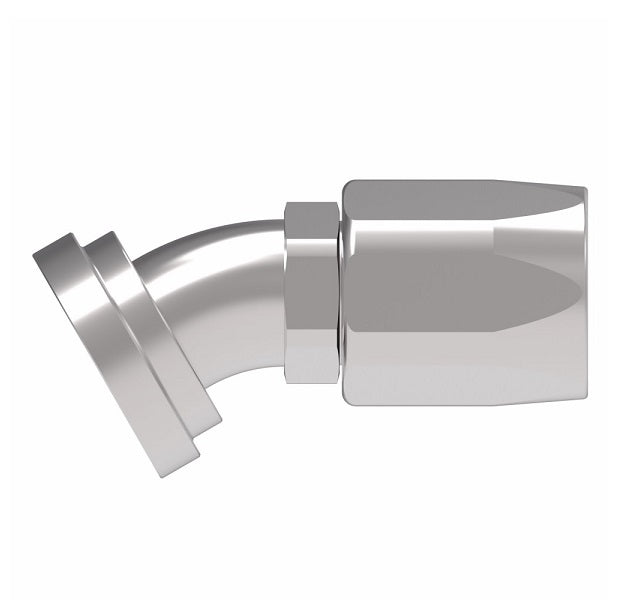

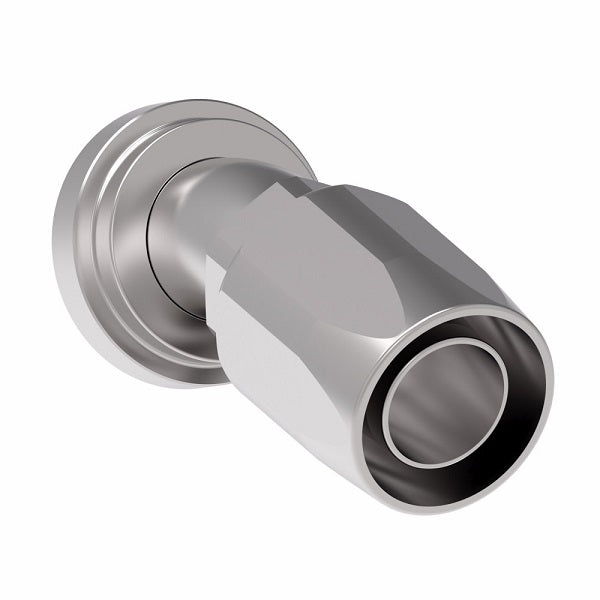

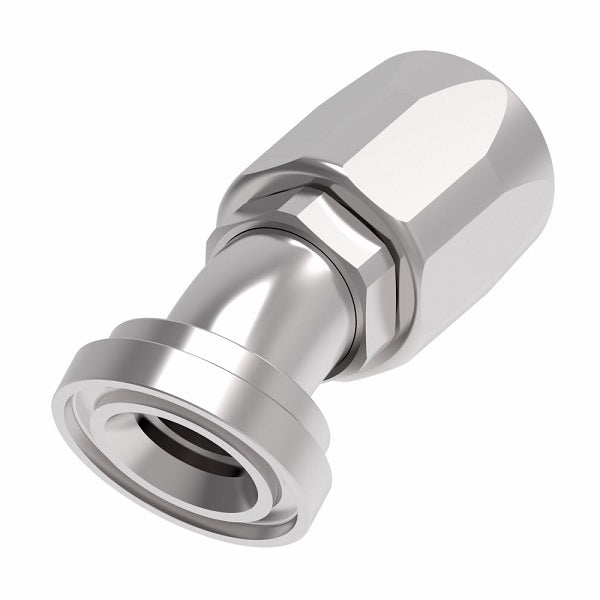

SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - 30° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190846-24S Danfoss
Shape (Orientation):	30 Degree
Ends Configuration:	1-1/2in Code 61 Flange, 1-1/2in Reusable Hose End
Compatible with the following Series:	1503 \| 2580 \| 2651 \| FC234 \| FC300 \| FC321 \| FC350 \| FC355 \| FC802

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Flange Head Diameter	A	D	EØ	H
190846-24S	-24	2.38"	3.96"	2.51"	1.28"	0.58"
190846-32S	-32	2.81"	4.68"	2.84"	1.75"	0.65"
