190846-32S Aeroquip by Danfoss | SAE Code 61 Split Flange 30° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel

190846-32S Aeroquip by Danfoss | SAE Code 61 Split Flange 30° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel

Name: 190846-32S Aeroquip by Danfoss | SAE Code 61 Split Flange 30° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190846-32S Danfoss
Price: 438.51 USD
Availability: InStock

$438.51 - $438.51

$438.51

$438.51 - $438.51

$438.51

Aeroquip® by Danfoss

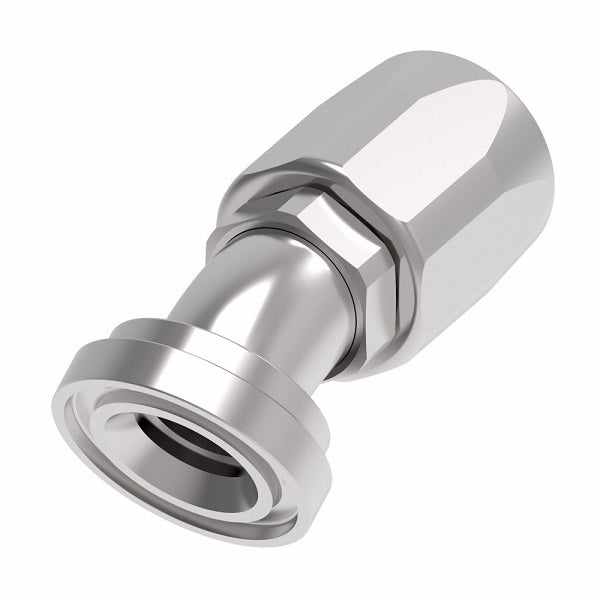

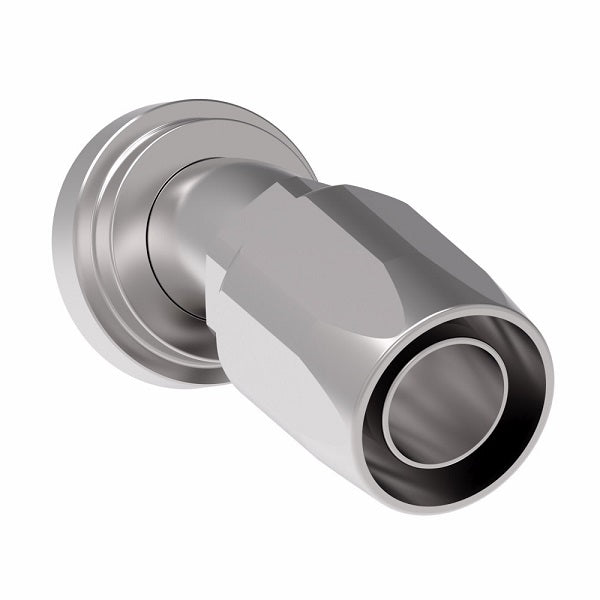

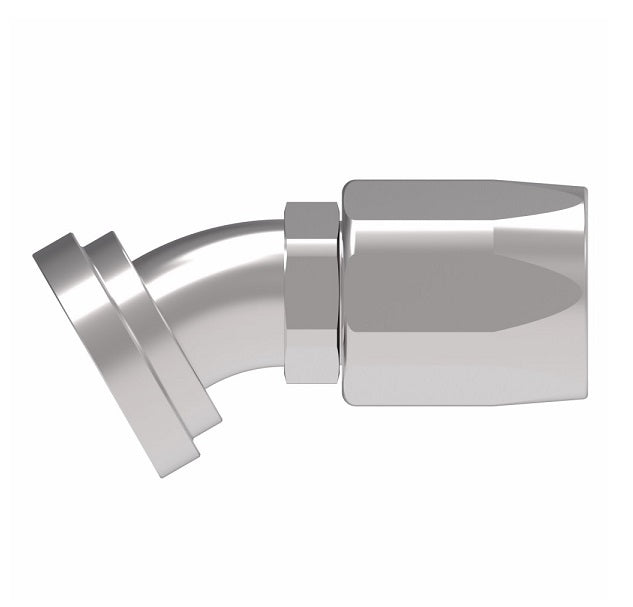

SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - 30° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190846-32S Danfoss
Shape (Orientation):	30 Degree
Ends Configuration:	2in Code 61 Flange, 2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Flange Head Diameter	A	D	EØ	H
190846-24S	-24	2.38"	3.96"	2.51"	1.28"	0.58"
190846-32S	-32	2.81"	4.68"	2.84"	1.75"	0.65"
