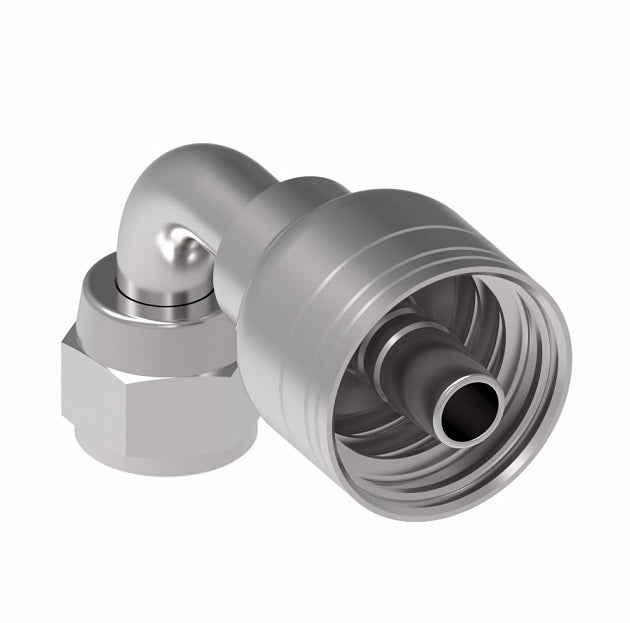

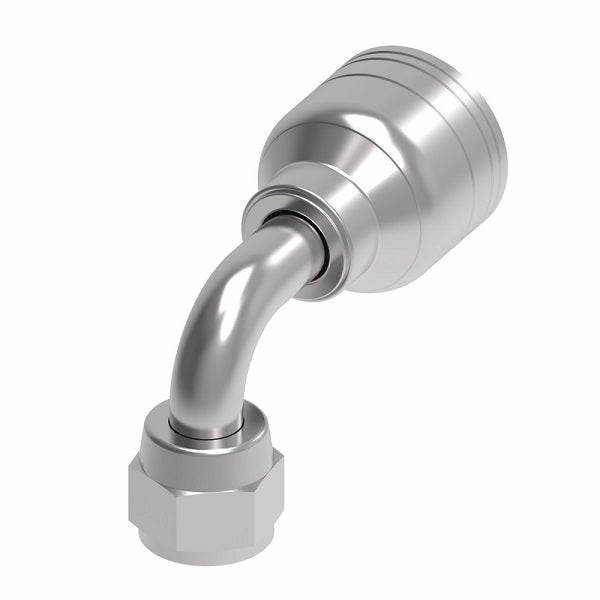

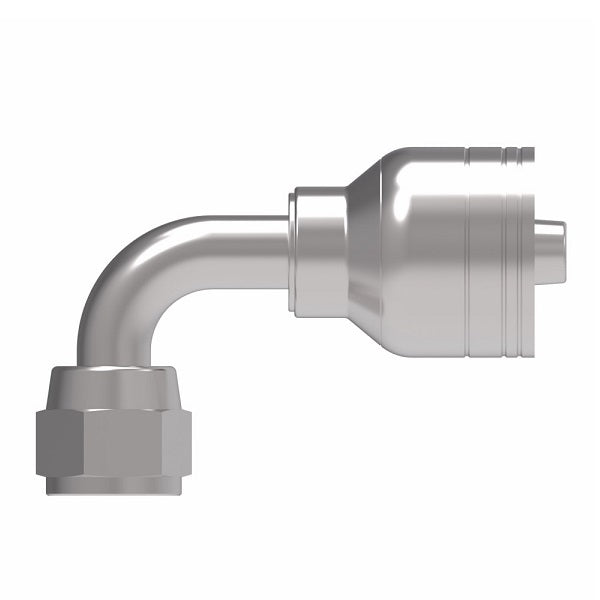

1A12FJB12 Aeroquip by Danfoss | Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel

1A12FJB12 Aeroquip by Danfoss | Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel

Name: 1A12FJB12 Aeroquip by Danfoss | Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A12FJB12 Danfoss
Price: 29.36 USD
Availability: InStock

$29.36 - $29.36

$29.36

$29.36 - $29.36

$29.36

Aeroquip® by Danfoss
Female JIC 37° Swivel (FJB) Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A12FJB12 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	Dash Size	End Size	Compatible Hose ID	Inside Diameter	Length
1A6FJB6	-06	9/16"	0.375"	0.24"	2.58"
1A10FJB10	-10	7/8"	0.625"	0.46"	3.23"
1A12FJB12	-12	1-1/16"	0.75"	0.58"	3.98"
