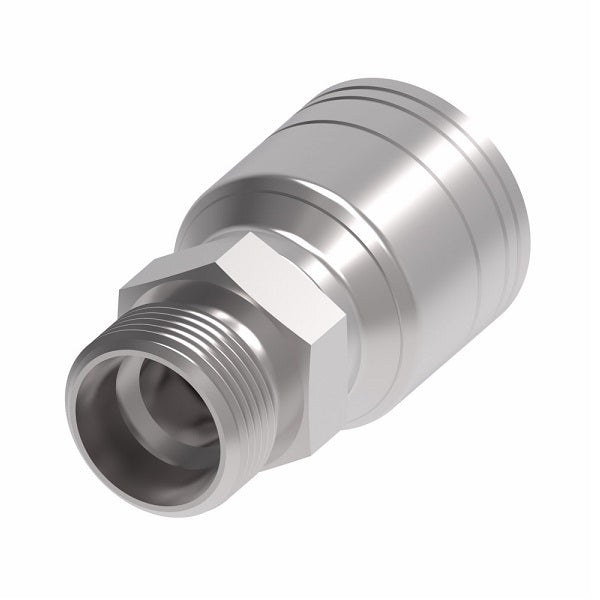

1A16EK10 Aeroquip by Danfoss | 1 & 2 Wire TTC 24° Male, Heavy Duty (EK) Crimp Fitting | S20 Male DKO/DIN x -10 Hose Barb | Steel

1A16EK10 Aeroquip by Danfoss | 1 & 2 Wire TTC 24° Male, Heavy Duty (EK) Crimp Fitting | S20 Male DKO/DIN x -10 Hose Barb | Steel

Name: 1A16EK10 Aeroquip by Danfoss | 1 & 2 Wire TTC 24° Male, Heavy Duty (EK) Crimp Fitting | S20 Male DKO/DIN x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A16EK10 Danfoss
Price: 36.72 USD
Availability: InStock

$36.72 - $36.72

$36.72

$36.72 - $36.72

$36.72

Aeroquip® by Danfoss
1 & 2 Wire TTC 24° Male DKO/DIN, Heavy Duty Crimp Fitting (EK) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A16EK10 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	S20 Male DIN, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread T	Tube OD	Hose Size	A	D	E&Oslash	Hex 2
1A5EK4	M16 x 1.5	8	-04	1.87"	0.95"	0.16"	0.67"
1A6EK4	M18 x 1.5	10	-04	1.60"	0.93"	0.16"	0.75"
1A6EK6	M18 x 1.5	10	-06	1.79"	0.95"	0.26"	0.75"
1A8EK6	M20 x 1.5	12	-06	1.98"	0.98"	0.26"	0.87"
1A10EK6	M22 x 1.5	14	-06	2.07"	1.07"	0.26"	0.94"
1A12EK8	M24 x 1.5	16	-08	2.28"	1.11"	0.38"	1.06"
1A16EK10	M30 x 2	20	-10	2.44"	1.29"	0.50"	1.26"
1A16EK12	M30 x 2	20	-12	2.27"	1.21"	0.61"	1.26"
1A20EK12	M36 x 2	25	-12	2.58"	1.39"	0.61"	1.61"
1A25EK16	M42 x 2	30	-16	2.85"	1.49"	0.81"	1.81"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
