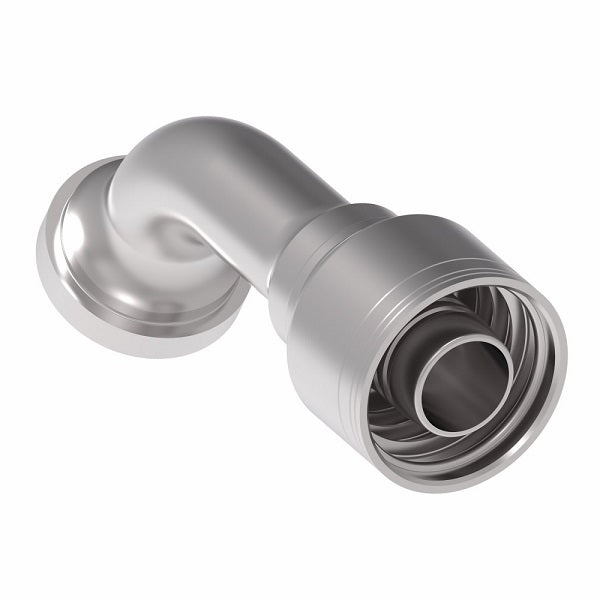

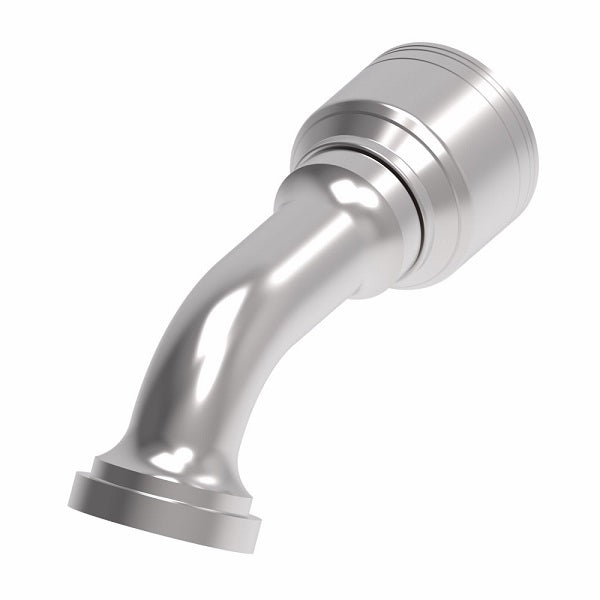

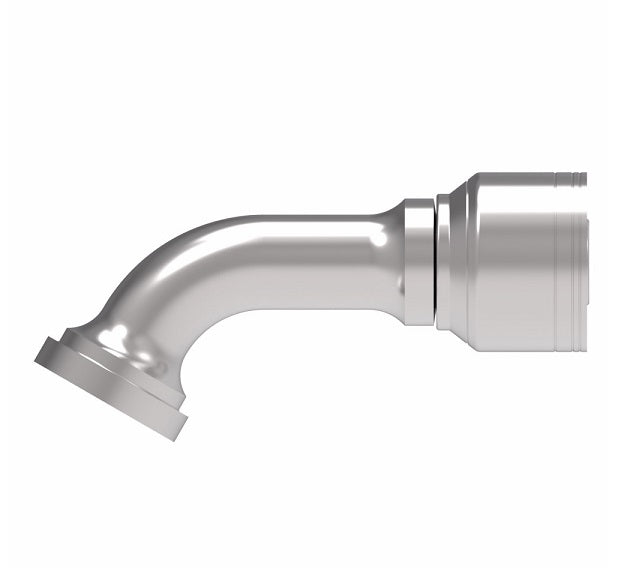

1A16FLG16 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 60° Elbow (FLG) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel

1A16FLG16 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 60° Elbow (FLG) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel

Name: 1A16FLG16 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 60° Elbow (FLG) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A16FLG16 Danfoss
Price: 88.58 USD
Availability: InStock

$88.58 - $88.58

$88.58

$88.58 - $88.58

$88.58

Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FLG) - 60° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A16FLG16 Danfoss
Shape (Orientation):	60 Degree
Ends Configuration:	1in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thd. Flange Head Diameter K&Oslash	Hose Size	A	D	E&Oslash	H
1A16FLG16	1.75"	-16	5.24"	3.89"	0.76"	1.51"
1A24FLG24	2.37"	-24	7.47"	5.65"	1.19"	1.81"
