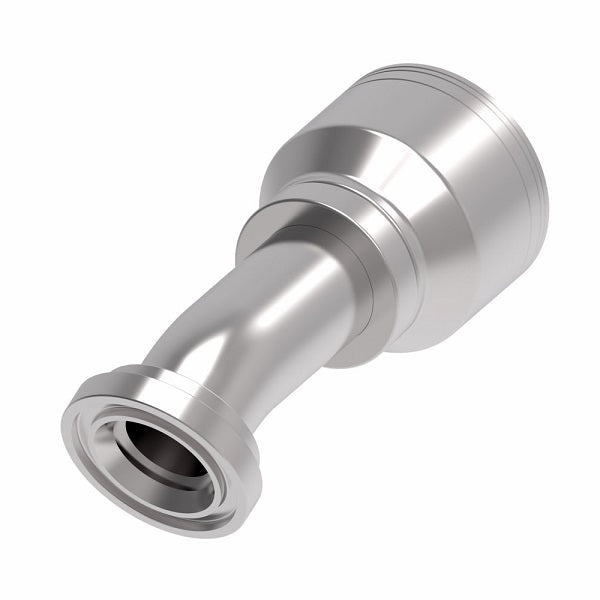

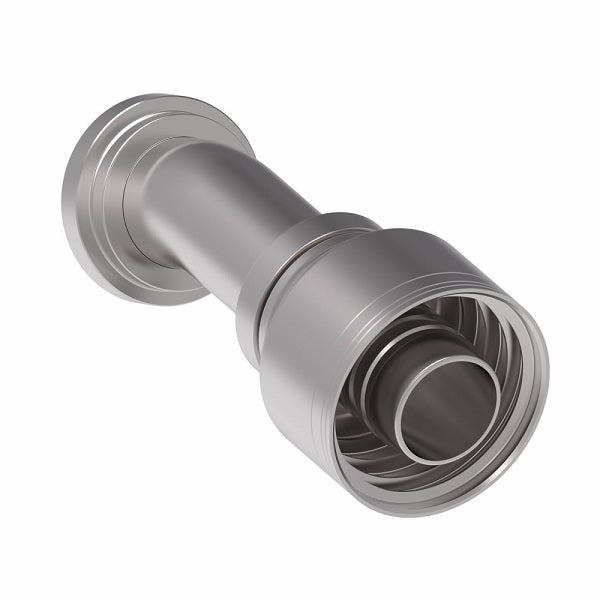

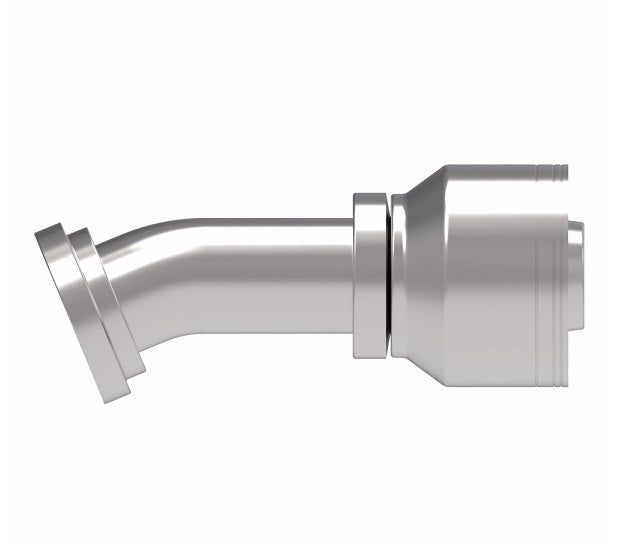

1A20FLD20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 22-1/2° Elbow (FLD) Crimp Fitting | -20 Code 61 Split Flange x -20 Hose Barb | Steel

1A20FLD20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 22-1/2° Elbow (FLD) Crimp Fitting | -20 Code 61 Split Flange x -20 Hose Barb | Steel

Name: 1A20FLD20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 22-1/2° Elbow (FLD) Crimp Fitting | -20 Code 61 Split Flange x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A20FLD20 Danfoss
Price: 96.34 USD
Availability: InStock

$96.34 - $96.34

$96.34

$96.34 - $96.34

$96.34

Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FLD) - 22-1/2° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A20FLD20 Danfoss
Shape (Orientation):	22.5 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thd. Flange Head Diameter K&Oslash	Hose Size	A	D	E&Oslash	H
1A16FLD16	1.75"	-16	4.64"	3.29"	0.76"	0.45"
1A20FLD20	2.00"	-20	5.57"	3.83"	1.01"	0.46"
