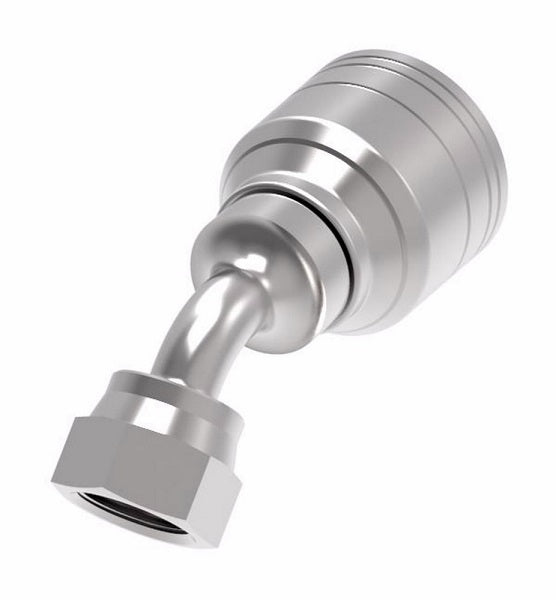

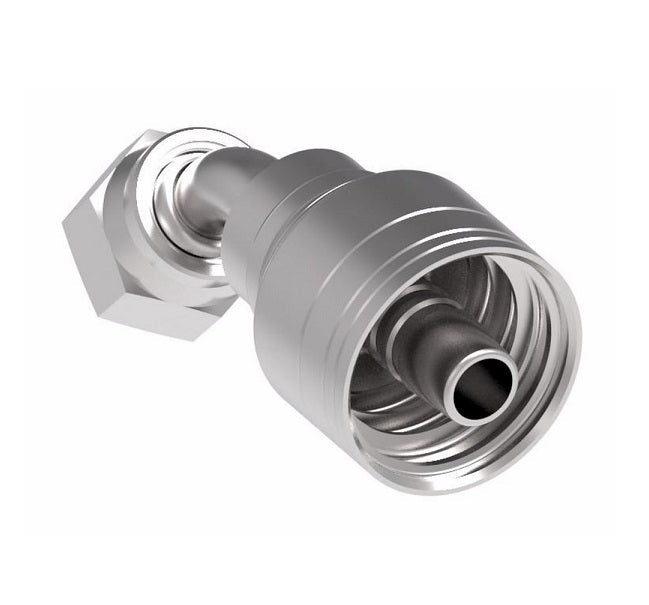

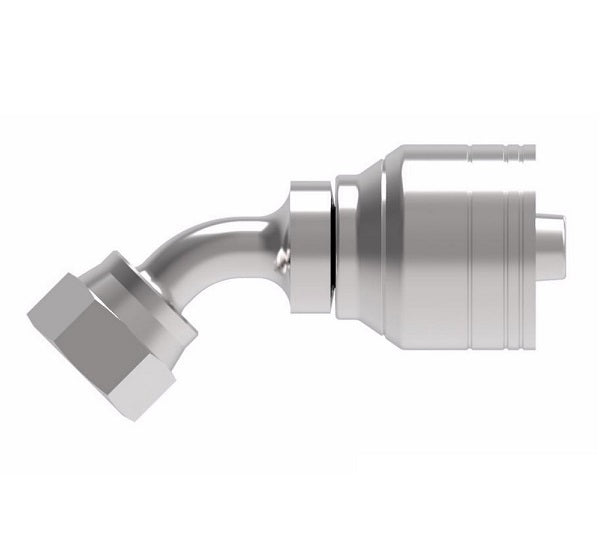

1A20FRA20 Aeroquip by Danfoss | Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

1A20FRA20 Aeroquip by Danfoss | Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

Name: 1A20FRA20 Aeroquip by Danfoss | Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A20FRA20 Danfoss
Price: 118.58 USD
Availability: InStock

$118.58 - $118.58

$118.58

$118.58 - $118.58

$118.58

Aeroquip® by Danfoss
Female O-Ring Face Seal Swivel (FRA) Crimp Fitting - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A20FRA20 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Female O-Ring Face Seal, 1-1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	Zinc-Nickel Plated Steel Part Number	Hose Dash Size	End Size	Compatible Hose ID	Inside Diameter	Length
1A16FRA20	-	-20	1-7/16"	1.25"	0.78	7.12"
1A20FRA20	-	-20	1-11/16"	1.25"	1.05"	6.64"
-	1A12FRA12TZ	-12	-	-	-	-
