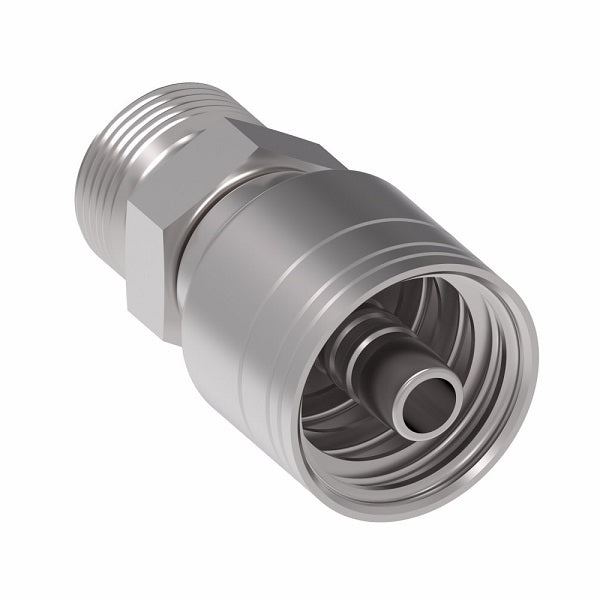

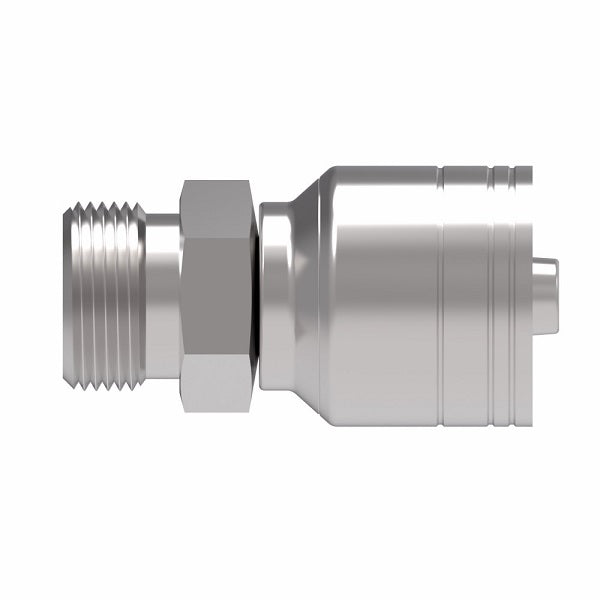

1A8EK6 Aeroquip by Danfoss | 1 & 2 Wire TTC 24° Male, Heavy Duty (EK) Crimp Fitting | S12 Male DKO/DIN x -06 Hose Barb | Steel
1A8EK6 Aeroquip by Danfoss | 1 & 2 Wire TTC 24° Male, Heavy Duty (EK) Crimp Fitting | S12 Male DKO/DIN x -06 Hose Barb | Steel
1A8EK6 Aeroquip by Danfoss | 1 & 2 Wire TTC 24° Male, Heavy Duty (EK) Crimp Fitting | S12 Male DKO/DIN x -06 Hose Barb | Steel
1A8EK6 Aeroquip by Danfoss | 1 & 2 Wire TTC 24° Male, Heavy Duty (EK) Crimp Fitting | S12 Male DKO/DIN x -06 Hose Barb | Steel

1A8EK6 Aeroquip by Danfoss | 1 & 2 Wire TTC 24° Male, Heavy Duty (EK) Crimp Fitting | S12 Male DKO/DIN x -06 Hose Barb | Steel

$17.76 - $17.76
$17.76
$17.76 - $17.76
$17.76

Aeroquip® by Danfoss
1 & 2 Wire TTC 24° Male DKO/DIN, Heavy Duty Crimp Fitting (EK) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A8EK6 Danfoss
Shape (Orientation): Straight
Ends Configuration: S12 Male DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread
T		 Tube OD Hose Size A D E&Oslash Hex 2
1A5EK4 M16 x 1.5 8 -04 1.87" 0.95" 0.16" 0.67"
1A6EK4 M18 x 1.5 10 -04 1.60" 0.93" 0.16" 0.75"
1A6EK6 M18 x 1.5 10 -06 1.79" 0.95" 0.26" 0.75"
1A8EK6 M20 x 1.5 12 -06 1.98" 0.98" 0.26" 0.87"
1A10EK6 M22 x 1.5 14 -06 2.07" 1.07" 0.26" 0.94"
1A12EK8 M24 x 1.5 16 -08 2.28" 1.11" 0.38" 1.06"
1A16EK10 M30 x 2 20 -10 2.44" 1.29" 0.50" 1.26"
1A16EK12 M30 x 2 20 -12 2.27" 1.21" 0.61" 1.26"
1A20EK12 M36 x 2 25 -12 2.58" 1.39" 0.61" 1.61"
1A25EK16 M42 x 2 30 -16 2.85" 1.49" 0.81" 1.81"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
