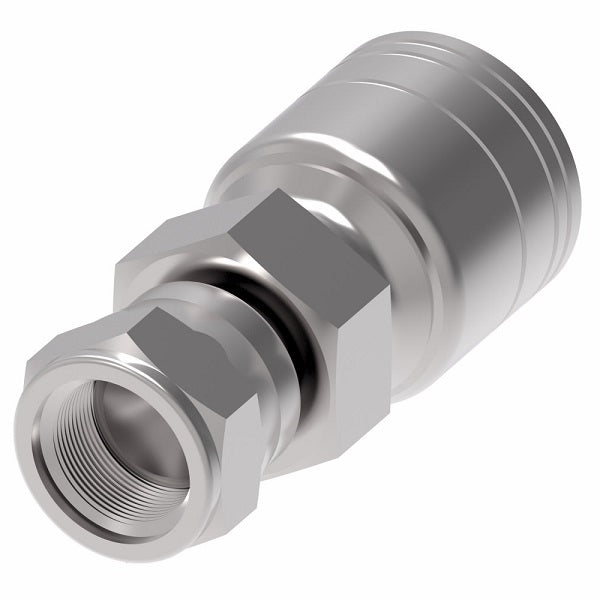

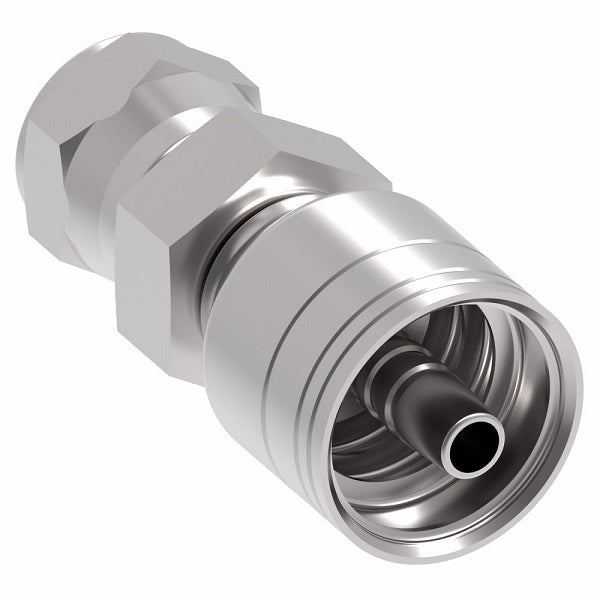

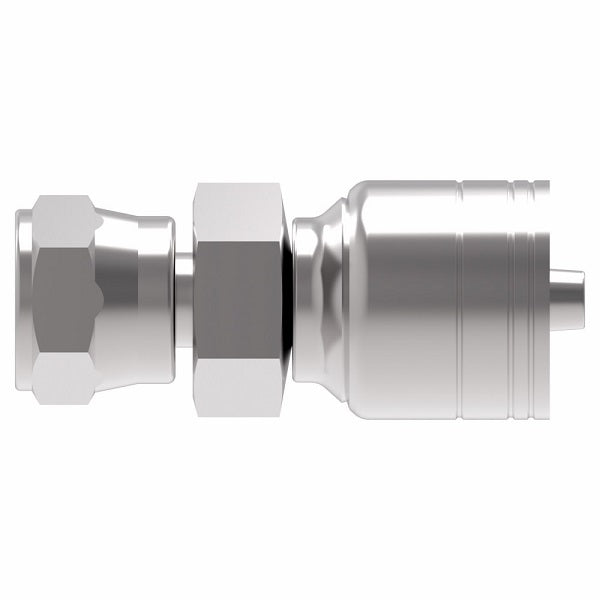

1A8JM8 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (JM) Crimp Fitting | -08 Female BSPP Swivel x -08 Hose Barb | Steel

1A8JM8 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (JM) Crimp Fitting | -08 Female BSPP Swivel x -08 Hose Barb | Steel | Pack of 10

$869.90 - $869.90

$869.90

$869.90 - $869.90

$869.90

Aeroquip® by Danfoss
1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (JM) - Steel

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.

Package Quantity: 10 Units

Specifications for Variant SKU: 1A8JM8 Danfoss \| 10 \|
Shape (Orientation):	Straight
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
1A4JM4	G 1/4	-04	1.85"	0.93"	0.16"	0.75"	0.75"
1A6JM6	G 3/8	-06	2.01"	1.01"	0.26"	0.87"	0.87"
1A8JM8	G 1/2	-08	2.28"	1.11"	0.38"	1.06"	1.06"
1A12JM12	G 3/4	-12	2.44"	1.25"	0.61"	1.26"	1.42"
