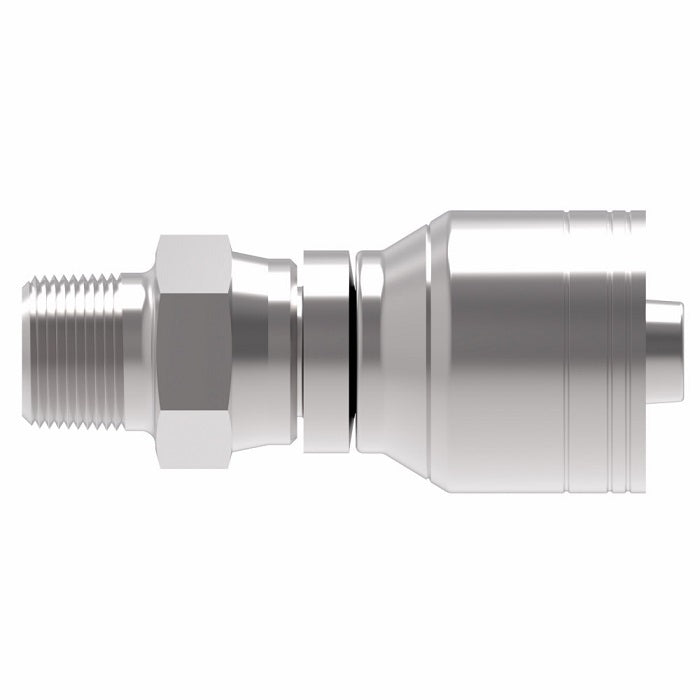

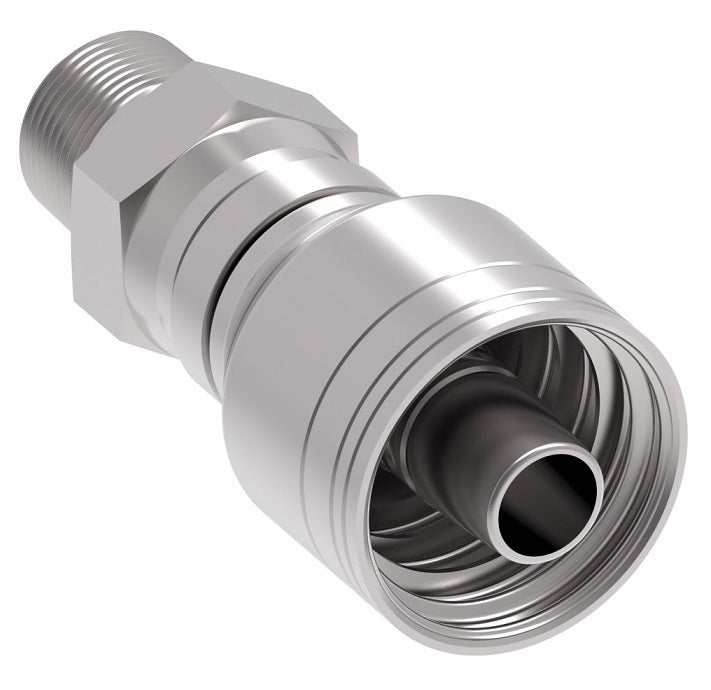

1AA12PS12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -12 Male Pipe x -12 Hose Barb | Steel
1AA12PS12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -12 Male Pipe Swivel x -12 Hose Barb | Steel
1AA12PS12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -12 Male Pipe Swivel x -12 Hose Barb | Steel
1AA12PS12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -12 Male Pipe x -12 Hose Barb | Steel

1AA12PS12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -12 Male Pipe Swivel x -12 Hose Barb | Steel

$30.00 - $30.00
$30.00
$30.00 - $30.00
$30.00

Aeroquip® by Danfoss
1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA12PS12 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681-6 Series  |   GH781 Series  |   GH793 Series  |   EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1
1AA4PS4 1/4-18 -04 2.54" 1.62" 0.17" 3/4"
1AA4PS6 1/4-18 -06 2.54" 1.67" 0.26" 3/4"
1AA6PS6 3/8-18 -06 2.66" 1.67" 0.26" 7/8"
1AA8PS4 1/2-14 -04 2.80" 1.80" - 7/8"
1AA8PS6 1/2-14 -06 2.85" 1.85" 0.26" 7/8"
1AA6PS8 3/8-18 -08 2.88" 1.71" 0.38" 7/8"
1AA8PS8 1/2-14 -08 3.13" 1.96" 0.38" 15/16"
1AA12PS12 3/4-14 -12 3.24" 2.05" 0.61" 1-3/8"
1AA16PS16 1-11-1/2 -16 3.88" 2.53" 0.81" 1-1/2"
