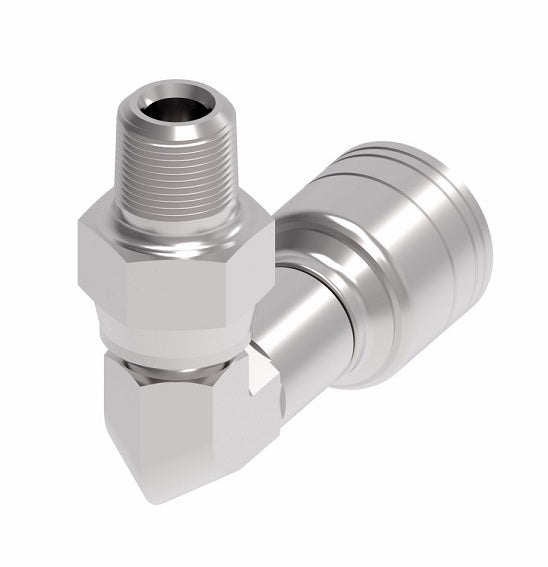

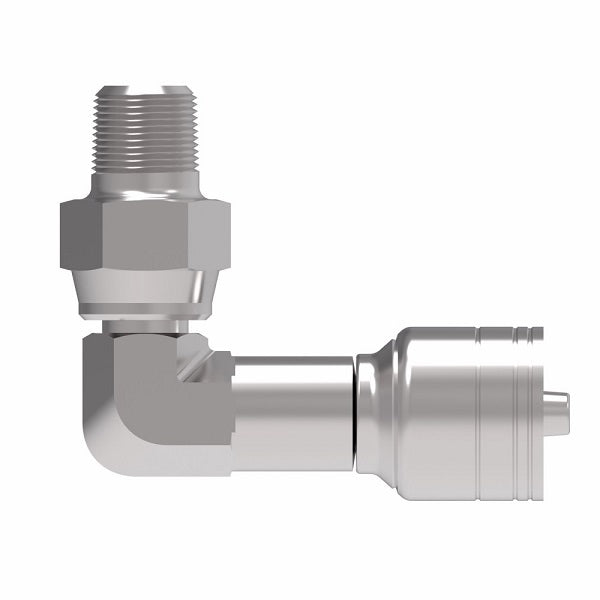

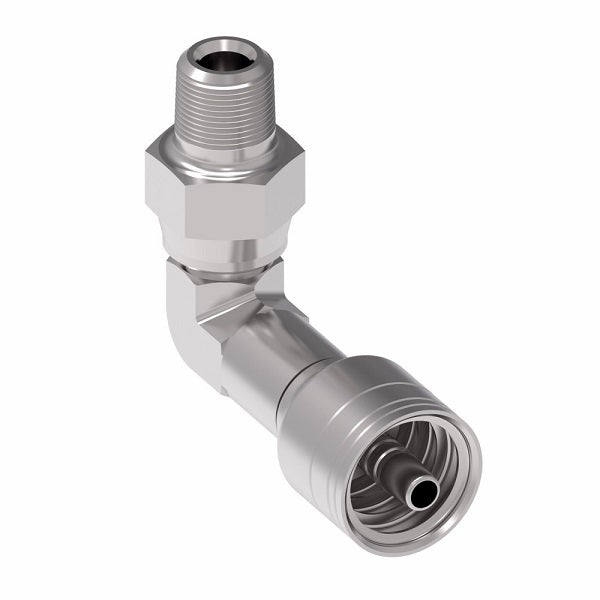

1AA12PSB12 Aeroquip by Danfoss | Male Pipe Swivel 90° Elbow (PSB) TTC Crimp Fitting | -12 Male NPTF Swivel x -12 Hose Barb | Steel
1AA12PSB12 Aeroquip by Danfoss | Male Pipe Swivel 90° Elbow (PSB) TTC Crimp Fitting | -12 Male NPTF Swivel x -12 Hose Barb | Steel | Pack of 10
1AA12PSB12 Aeroquip by Danfoss | Male Pipe Swivel 90° Elbow (PSB) TTC Crimp Fitting | -12 Male NPTF Swivel x -12 Hose Barb | Steel | Pack of 10
1AA12PSB12 Aeroquip by Danfoss | Male Pipe Swivel 90° Elbow (PSB) TTC Crimp Fitting | -12 Male NPTF Swivel x -12 Hose Barb | Steel

1AA12PSB12 Aeroquip by Danfoss | Male Pipe Swivel 90° Elbow (PSB) TTC Crimp Fitting | -12 Male NPTF Swivel x -12 Hose Barb | Steel | Pack of 10

$606.20 - $606.20
$606.20
$606.20 - $606.20
$606.20

Aeroquip® by Danfoss
Male Pipe Swivel (PSB) TTC Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1AA12PSB12 Danfoss | 10 |
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Male NPTF, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 3130 Series  |   3740 Series  |   3R80 Series  |   3E80 Series  |   2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series  |   EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Technical Info:
Steel
Part Number 		Thread Hose Dash Size A Hose Cut-OffFactor (D) EØ Hex 2

 Hex 1

 B
1AA4PSB4 1/4-18 -04 2.15" 1.23" 0.17" 3/4" 3/4" 1.81
1AA4PSB6 1/4-18 -06 2.16" 1.33" 0.26" 3/4" 7/8" 1.96
1AA6PSB6 3/8-18 -06 2.33" 1.33" 0.26" 3/4" 7/8" 1.80
1AA8PSB8 1/2-14 -08 2.68" 1.51" 0.38" 3/4" 15/16" 2.05
1AA12PSB12 3/4-14 -12 3.72" 2.53" 0.61" 1-1/4" 1-3/8" 2.72

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
