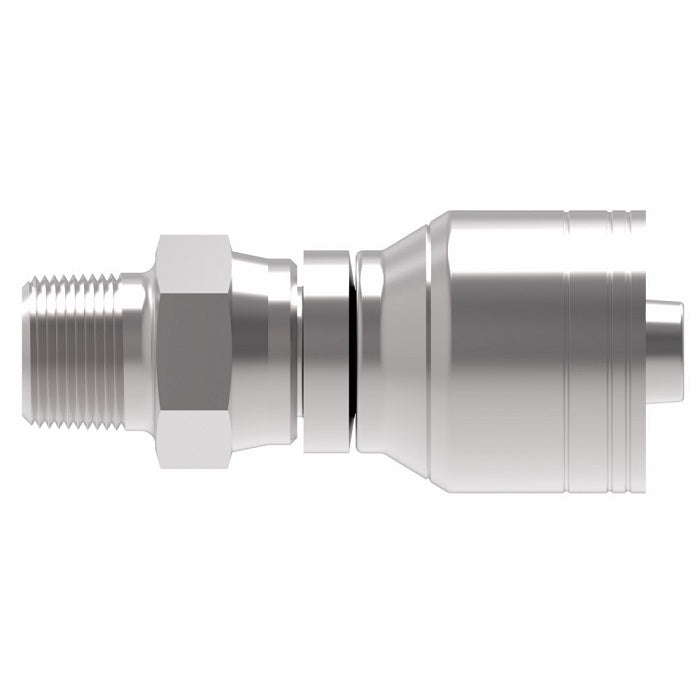

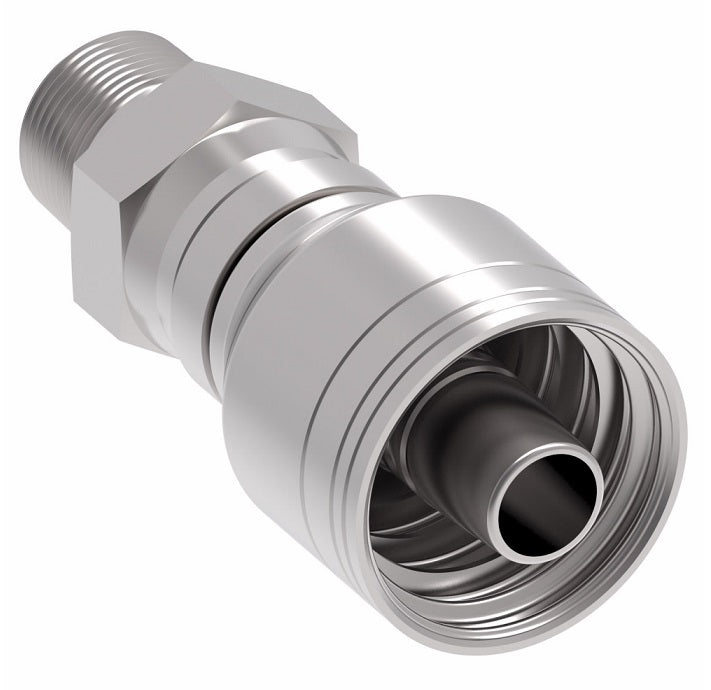

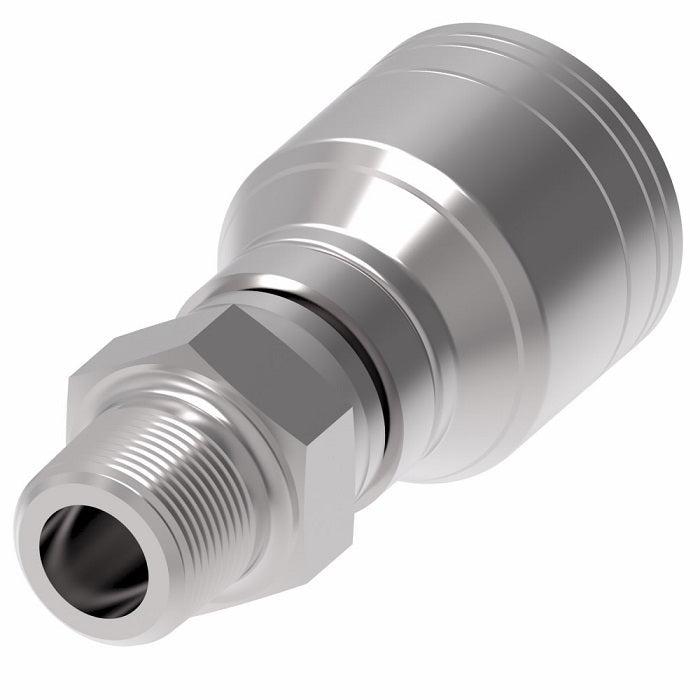

1AA16PS16 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -16 Male Pipe x -16 Hose Barb | Steel

1AA16PS16 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -16 Male Pipe Swivel x -16 Hose Barb | Steel

$50.31 - $50.31
$50.31
$50.31 - $50.31
$50.31

Aeroquip® by Danfoss
1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA16PS16 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681-6 Series  |   GH781 Series  |   GH793 Series  |   EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1
1AA4PS4 1/4-18 -04 2.54" 1.62" 0.17" 3/4"
1AA4PS6 1/4-18 -06 2.54" 1.67" 0.26" 3/4"
1AA6PS6 3/8-18 -06 2.66" 1.67" 0.26" 7/8"
1AA8PS4 1/2-14 -04 2.80" 1.80" - 7/8"
1AA8PS6 1/2-14 -06 2.85" 1.85" 0.26" 7/8"
1AA6PS8 3/8-18 -08 2.88" 1.71" 0.38" 7/8"
1AA8PS8 1/2-14 -08 3.13" 1.96" 0.38" 15/16"
1AA12PS12 3/4-14 -12 3.24" 2.05" 0.61" 1-3/8"
1AA16PS16 1-11-1/2 -16 3.88" 2.53" 0.81" 1-1/2"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
