Aeroquip® by Danfoss

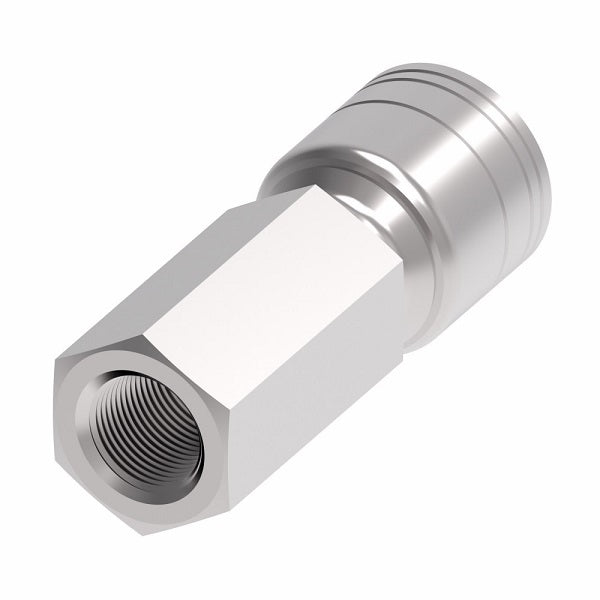

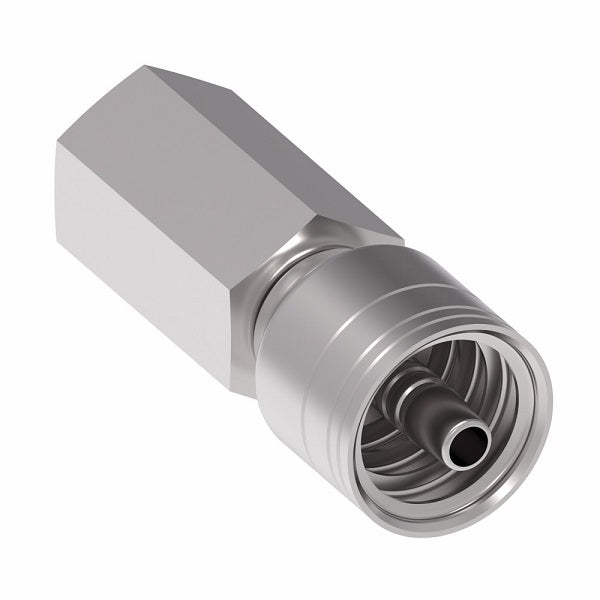

Dryseal Female Pipe Rigid (FP) TTC Crimp Fitting - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA4FP6 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPTF, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Female NPTF Rigid Thread	Hose Size	A	Hose Cut-Off Factor	EØ	Hex 2
1AA2FP4	1/8-27	-04	2.07"	1.28"	0.17"	9/16"
1AA4FP4	1/4-18	-04	2.30"	1.51"	0.17"	3/4"
1AA4FP6	1/4-18	-04	2.30"	1.46"	0.26"	3/4"
1AA6FP6	3/8-18	-06	2.41"	1.57"	0.26"	7/8"
1AA8FP8	1/2-14	-08	2.62"	1.65"	0.38"	1-1/16"
1AA12FP12	3/4-14	-12	3.58"	2.52"	0.61"	1-5/16"

* G as part of thread size is ISO Designation for parallel thread.
