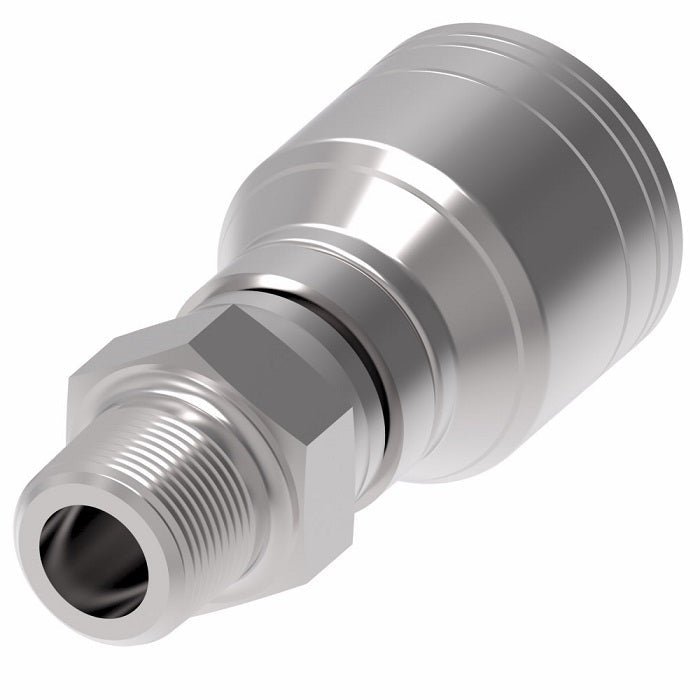

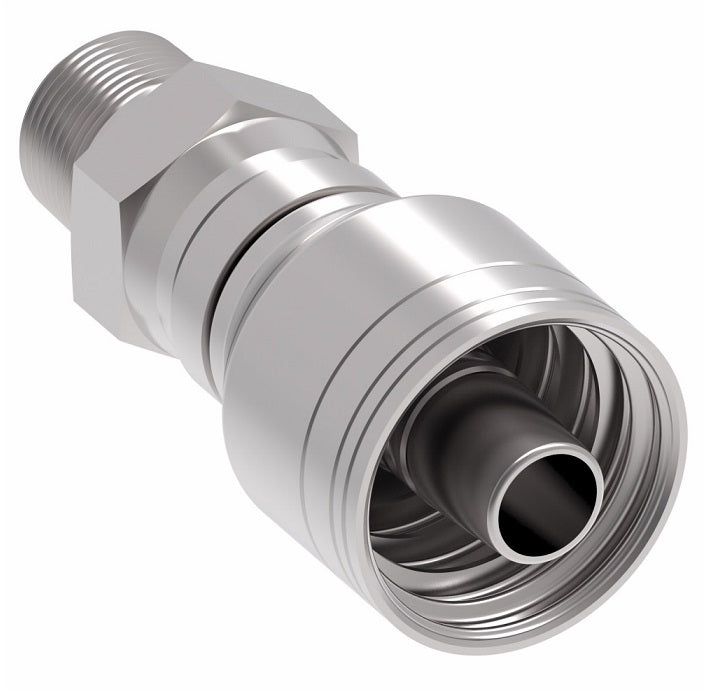

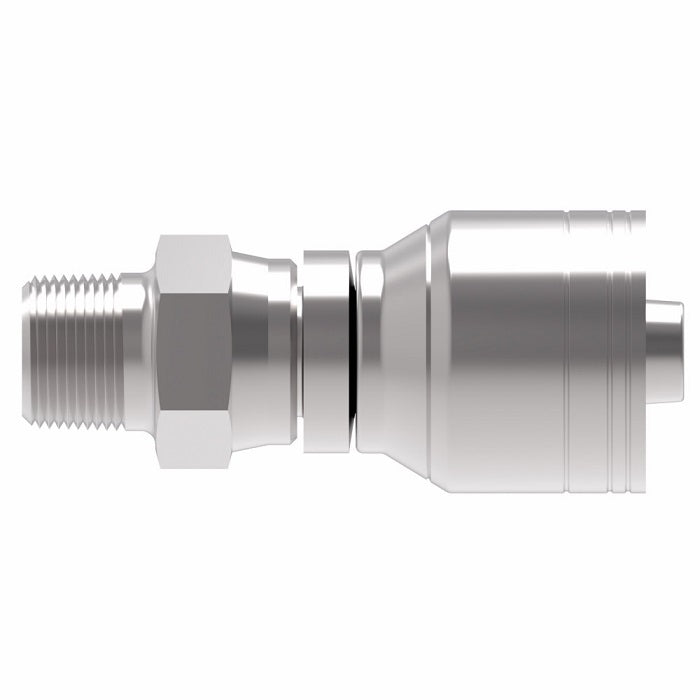

1AA4PS4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -04 Male Pipe x -04 Hose Barb | Steel

1AA4PS4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -04 Male Pipe Swivel x -04 Hose Barb | Steel

Name: 1AA4PS4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) | -04 Male Pipe Swivel x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA4PS4 Danfoss
Price: 16.52 USD
Availability: InStock

$16.52 - $16.52

$16.52

$16.52 - $16.52

$16.52

Aeroquip® by Danfoss
1 & 2 Wire TTC Male Pipe Swivel Crimp Fitting (PS) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA4PS4 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681-6 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1
1AA4PS4	1/4-18	-04	2.54"	1.62"	0.17"	3/4"
1AA4PS6	1/4-18	-06	2.54"	1.67"	0.26"	3/4"
1AA6PS6	3/8-18	-06	2.66"	1.67"	0.26"	7/8"
1AA8PS4	1/2-14	-04	2.80"	1.80"	-	7/8"
1AA8PS6	1/2-14	-06	2.85"	1.85"	0.26"	7/8"
1AA6PS8	3/8-18	-08	2.88"	1.71"	0.38"	7/8"
1AA8PS8	1/2-14	-08	3.13"	1.96"	0.38"	15/16"
1AA12PS12	3/4-14	-12	3.24"	2.05"	0.61"	1-3/8"
1AA16PS16	1-11-1/2	-16	3.88"	2.53"	0.81"	1-1/2"
