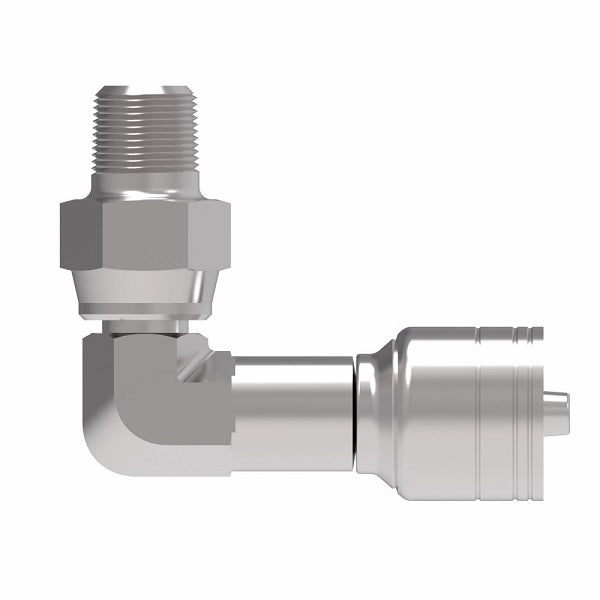

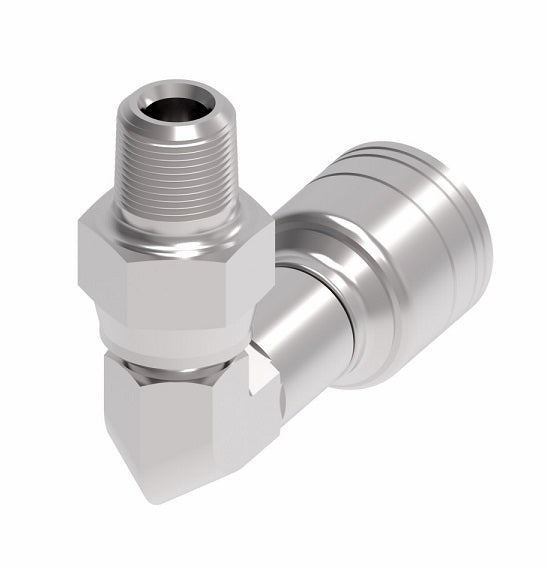

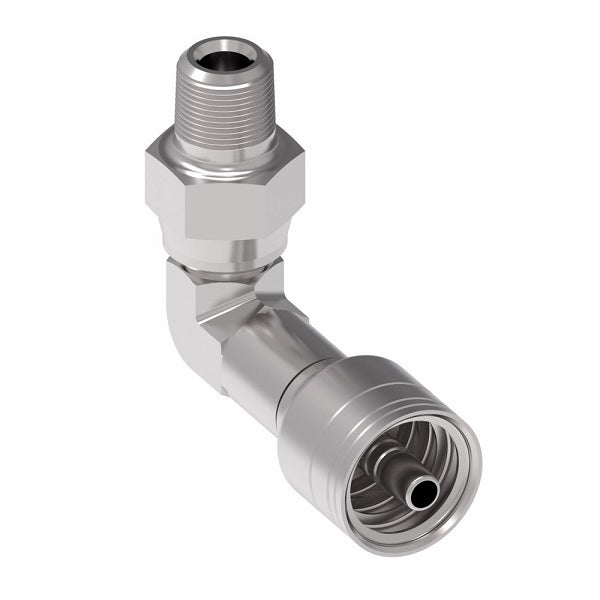

1AA4PSB6 Aeroquip by Danfoss | Male Pipe Swivel 90° Elbow (PSB) TTC Crimp Fitting | -04 Male NPTF Swivel x -06 Hose Barb | Steel

1AA4PSB6 Aeroquip by Danfoss | Male Pipe Swivel 90° Elbow (PSB) TTC Crimp Fitting | -04 Male NPTF Swivel x -06 Hose Barb | Steel

Name: 1AA4PSB6 Aeroquip by Danfoss | Male Pipe Swivel 90° Elbow (PSB) TTC Crimp Fitting | -04 Male NPTF Swivel x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA4PSB6 Danfoss
Price: 38.29 USD
Availability: InStock

$38.29 - $38.29

$38.29

$38.29 - $38.29

$38.29

Aeroquip® by Danfoss
Male Pipe Swivel (PSB) TTC Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA4PSB6 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male NPTF, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Dash Size	A	Hose Cut-OffFactor (D)	EØ	Hex 2	Hex 1	B
1AA4PSB4	1/4-18	-04	2.15"	1.23"	0.17"	3/4"	3/4"	1.81
1AA4PSB6	1/4-18	-06	2.16"	1.33"	0.26"	3/4"	7/8"	1.96
1AA6PSB6	3/8-18	-06	2.33"	1.33"	0.26"	3/4"	7/8"	1.80
1AA8PSB8	1/2-14	-08	2.68"	1.51"	0.38"	3/4"	15/16"	2.05
1AA12PSB12	3/4-14	-12	3.72"	2.53"	0.61"	1-1/4"	1-3/8"	2.72
