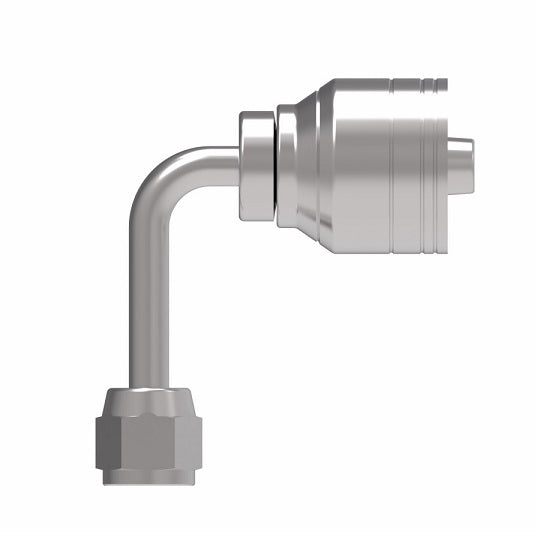

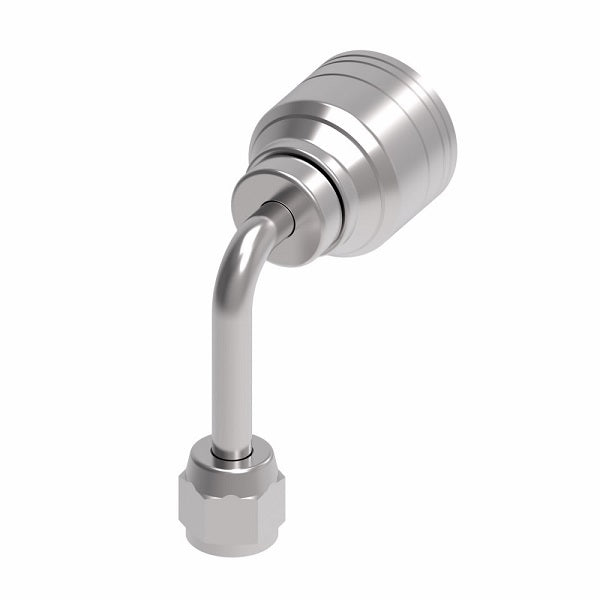

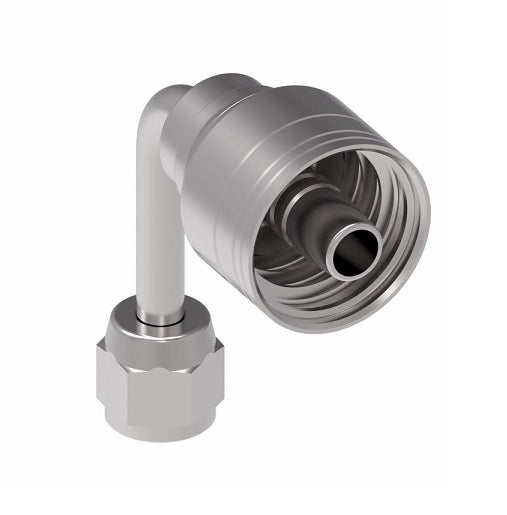

1AA5FJC4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -05 Female JIC 37° Swivel x -04 Hose Barb | Steel

Name: 1AA5FJC4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -05 Female JIC 37° Swivel x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA5FJC4 Danfoss
Price: 42.81 USD
Availability: InStock

$42.81 - $42.81

$42.81

$42.81 - $42.81

$42.81

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Long Drop Crimp Fitting (FJC) - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA5FJC4 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Female JIC, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	EØ	H	Hex 1
1AA4FJC4*	1AA4FJC4TZ	7/16-20	-04	1.84"	0.92"	0.17"	1.80"	9/16"
1AA5FJC4*	-	1/2-20	-04	1.92"	1.00"	0.17"	1.80"	5/8"
1AA4FJC6	-	7/16-20	-06	1.81"	0.98"	0.17"	1.80"	9/16"
1AA6FJC4	1AA6FJC4TZ	9/16-18	-04	-	-	-	-	-
1AA6FJC6	1AA6FJC6TZ	9/16-18	-06	2.22"	1.23"	0.24"	2.18"	11/16"
1AA8FJC6*	-	3/4-16	-06	2.54"	1.54"	0.26"	2.45"	7/8"
1AA8FJC8*	1AA8FJC8TZ	3/4-16	-08	2.71"	1.54"	0.37"	2.45"	7/8"
1AA10FJC8*	-	7/8-14	-08	2.78"	1.61"	0.38"	2.57"	1"
1AA10FJC10	-	7/8-14	-10	2.70"	1.54"	0.46"	2.57"	1"
1AA12FJC12**	1AA12FJC12TZ	1-1/16-12	-12	3.36"	2.04"	0.58"	3.76"	1-1/4"
1AA16FJC16***	1AA16FJC16TZ	1-5/16-12	-16	3.56"	2.87"	0.81"	4.58"	1-1/2"
1AA20FJC20	-	1-5/8-12	-20	4.25"	2.52"	1.01"	5.53"	2"

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.

** The 90º long drop tube elbow configuration meets a 3.5:1 burst, based on 4000 PSI operating pressure

*** The 90º long drop tube elbow configuration meets a 3.7:1 burst, based on 3000 PSI operating pressure.
