Name: 1AA8SBB8 Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SBB) 90° Elbow TCC Crimp Fitting | -08 Male O-Ring Boss x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA8SBB8 Danfoss
Price: 35.24 USD
Availability: InStock

$35.24 - $35.24

$35.24

$35.24 - $35.24

$35.24

Aeroquip® by Danfoss

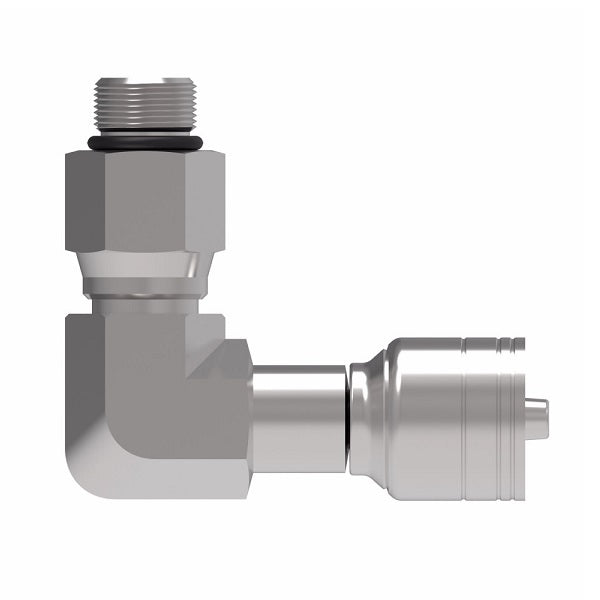

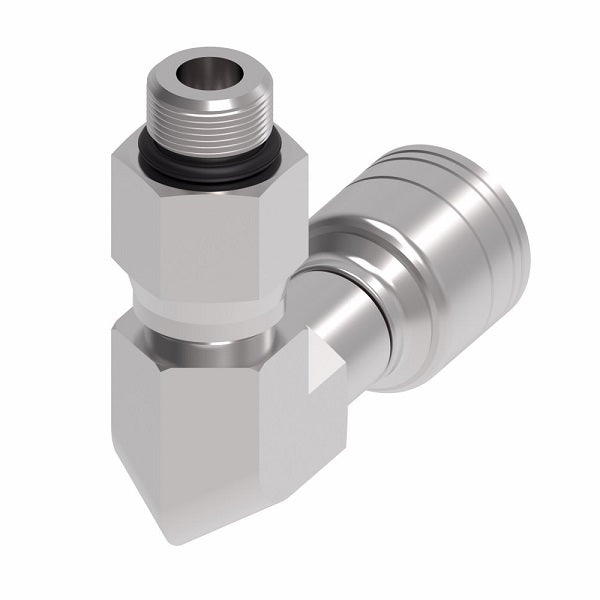

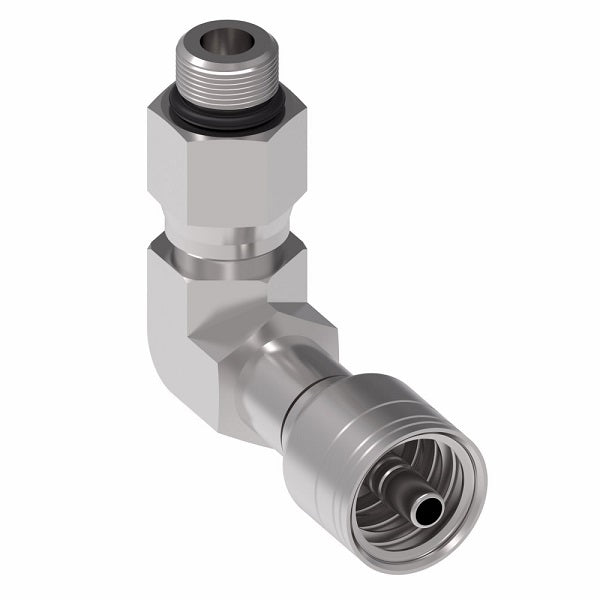

TCC Crimp Fitting - Male ORB Straight Thread Swivel (With Sleeve) (SBB) - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA8SBB8 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Male O-Ring Boss, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Note:
TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Crimp Fitting Socket Data.PDF


Part Number Steel	Part Number Zinc-Plated Nickel Steel	Thread	Hose Dash Size	A	Hose Cut-Off Factor D	E&Oslash	Hex 2	Hex 1	B
1AA6SBB4	-	9/16-18	-04	2.18"	1.26"	0.17"	3/4"	7/8"	1,87"
1AA6SBB6	-	9/16-18	-06	2.33"	1.33"	0.26"	3/4"	7/8"	1,87"
1AA8SBB6	-	3/4-16	-06	2.33"	1.33"	0.26"	3/4"	1"	1,93"
1AA10SBB6	-	7/8-14	-06	2.33"	1.33"	0.26"	3/4"	1"	1.95"
1AA8SBB8	-	3/4-16	-08	2.68"	1.51"	0.38"	3/4"	1"	1.93"
1AA10SBB8	1AA10SBB8TZ	7/8-14	-08	2.68"	1.51"	0.38"	3/4"	1"	1.97"
1AA12SBB12	-	1-1/16-12	-12	3.72"	2.53"	0.61"	1-1/4"	1-7/16"	2,65"
1AA12SBB8	-	1-1/16-12	-08	3.12"	1.95"	0.38"	1-1/16"	1-7/16"	2,43"
